How do I know if my car is out of alignment? An alignment refers to the adjustment of a vehicle’s suspension. When properly aligned, your suspension points your vehicle’s tires and wheels straight down the road. When your suspension goes out of alignment, it causes irregular tire wear and steering inconsistencies. Although commonly referred to as a wheel alignment, the result can affect multiple points on your vehicle.

DOES AMERICA'S TIRE DO ALIGNMENTS?

America's Tire does not perform alignment services, but we want to provide you with useful information about how alignment settings can affect your tires.

WHAT IS A WHEEL ALIGNMENT?

A variety of factors can cause your vehicle to go out of alignment but the most common are impacts with potholes or brushing/scraping against curbs or objects. Each of these jarring blows shakes your suspension, causing it to stray from its ideal alignment settings.

However, your alignment can naturally fall out of line. Normal wear and tear causes rubber suspension components to crack, ball and socket joints to loosen and the build-up of thousands of small impacts can eventually affect your vehicle’s alignment.

What else might cause your vehicle to be out of alignment? In many cases, other components, such as suspension parts, of the car can affect tire and wheel alignment. These include:

Worn springs lower ride height, altering vehicle geometry and creating misalignment

Weak springs contribute to uneven tire wear; also called “cupping”

Worn ball joints can commonly cause erratic handling, slow steering response and irregular tire wear

Worn tire rods allow tires to wander left or right, causing irregular tire wear

If you notice your vehicle pulling to the left or right, you detect irregular tire wear, or if the steering wheel is off center when driving straight, you should have your vehicle inspected for possible alignment concerns. Alignment issues that go uncorrected will cause tires to wear down and need to be replaced prematurely.

Alignment technicians adjust four different settings to set a vehicle in alignment:

Caster

Camber

Toe

Ride height

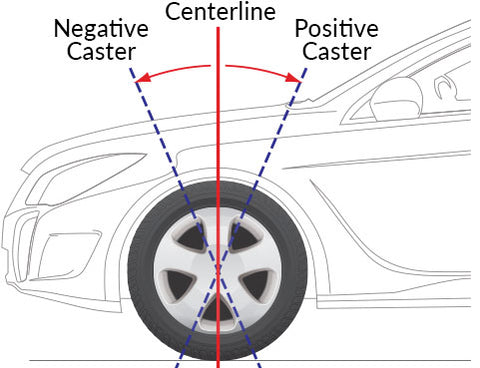

CASTER

Caster refers to the angle of the steering axis, which is the suspension component supporting the wheel and tire assembly. You can visualize the caster as an imaginary line that runs along the vehicle’s axle. The caster can be negative, centered or positive. When properly aligned, the caster contributes to steering feel and high-speed stability.

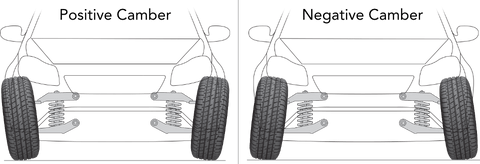

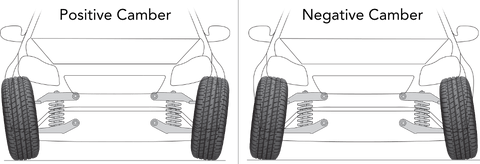

CAMBER

Camber describes the tire’s inward or outward tilt, when viewed from the front of your vehicle. Negative camber refers to a tire tilted in, while positive camber refers to a tire tilted out. This adjustment can maximize the tire-to-road contact, and account for changes in force as a vehicle turns. Out of each alignment adjustment, camber has the widest range of recommended settings. This range can accommodate different vehicle handling characteristics. Higher negative camber suits those who corner aggressively, while less negative camber suits those who perform very little hard cornering.

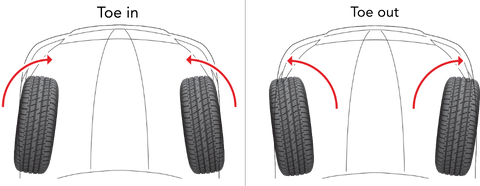

TOE

Toe describes the relationship between a tire’s front and rear end, as viewed from above. The front of the tire can be either closer or farther from each other. A front wheel drive (FWD) vehicle requires a compensating toe-out setting on the front axle, since the front wheels pull toward each other as the vehicle moves. A rear wheel drive (RWD) vehicle can have a toe-in setting on the front axle, since these wheels pull away from each other during acceleration.

RIDE HEIGHT

Ride height simply refers to the distance between the road and the vehicle frame. The ride height provides reference points for all alignment measurements. Any deviation from the factory ride height, such as lifting or lowering a vehicle, will need to have an alignment check after customizations have been performed.

Be careful not to confuse wheel alignment settings like camber and toe confused with wheel offset and backspacing which are descriptions of a wheel’s ideal position, ensuring it fits the vehicle appropriately without aggravating other components like fenders and brakes.

HOW TO TROUBLESHOOT TIRE WEAR PATTERNS

A tire expert can often observe wear on a tire and determine where your vehicle is out of alignment. Check out our troubleshooting guide below.

Symptom:Premature smooth wear on inside/outside shoulder
Possible Cause: Incorrect Camber Setting

Symptom:Excessive shoulder wear, tread blocks show “heel-toe” wear pattern

Possible Cause:Incorrect Caster Setting

Symptom:Sharp pulling necessitates steering compensation and feathered wear

Possible Cause:Unequal Toe Setting (either right or left side out of specification)

Symptom:Feathered wear across tread,raised tread block edges

Possible Cause:Incorrect Toe Setting

Symptom:Sharp pulling necessitates steering compensation and feathered wear

Possible Cause:Unequal Caster Setting (either right or left side out of specification)

Symptom:Irregular tread wear with feathering and smooth spots

Possible Cause:Combination of two or more settings are out of specification

Each of these issues require an alignment to correct the issue and prevent future irregular tire wear. Tire wear patterns are great insights into tire and wheel damage that may or may not stem from misalignment. We have not included every wear and misalignment possibility, however using these major symptoms you can get the most out of your tires. Paying attention to your tire tread and vehicle performance is an excellent way to know when to replace your tires.
