Katool KT-AM120SD 12,000lbs Two Post Lift

Katool KT-AM120SD 12,000lbs Two Post Lift

$2,799.00 USD
$2,799.00 USD
Sale Sold out
Shipping calculated at checkout.

Katool Automotive Equipment KT-AM120SD Two Post Lift

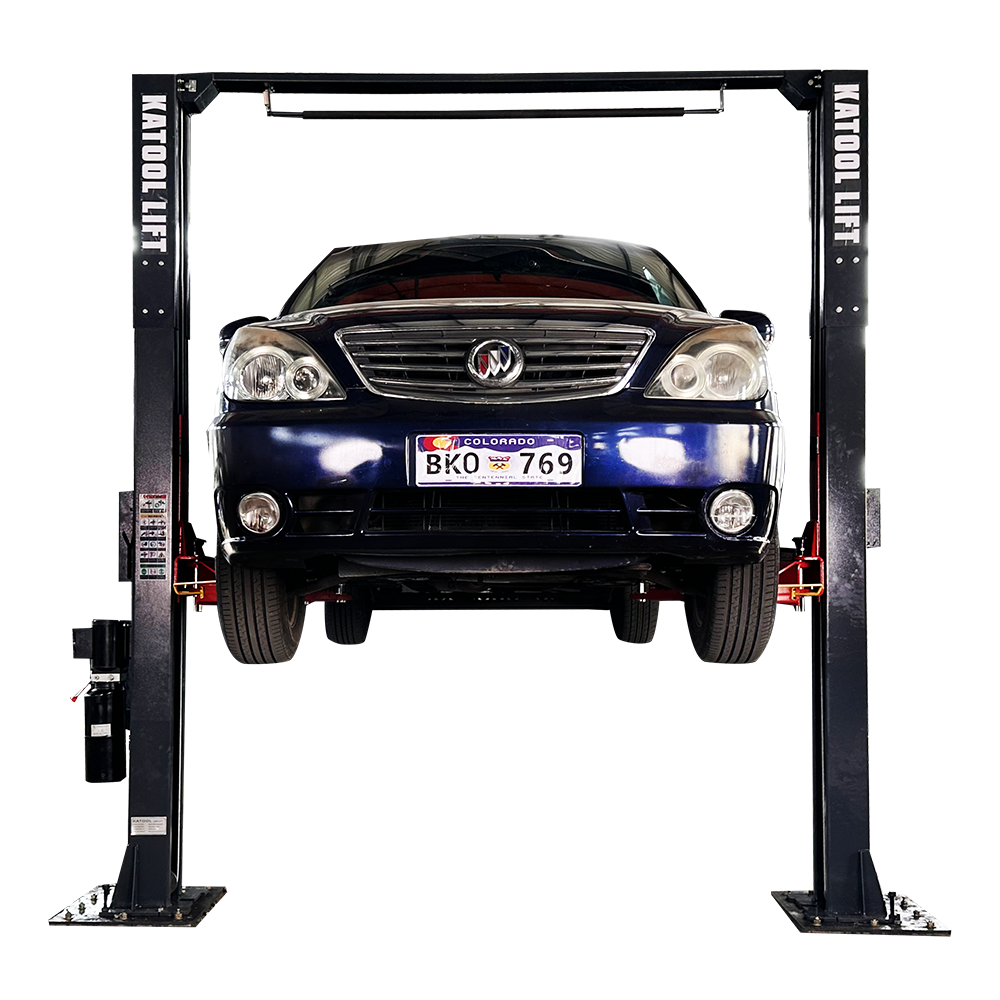

The Katool Automotive Equipment KT-AM120SD Two Post Lift is a heavy-duty, professional-grade lift built to handle demanding service work with strength, stability, and efficiency. With a 12,000 lb lifting capacity, this clear-floor two-post lift is designed to service a wide range of vehicles, including cars, trucks, and SUVs. Its asymmetric arm configuration helps improve vehicle positioning and door access, while the single-point lock release system supports convenient day-to-day operation.

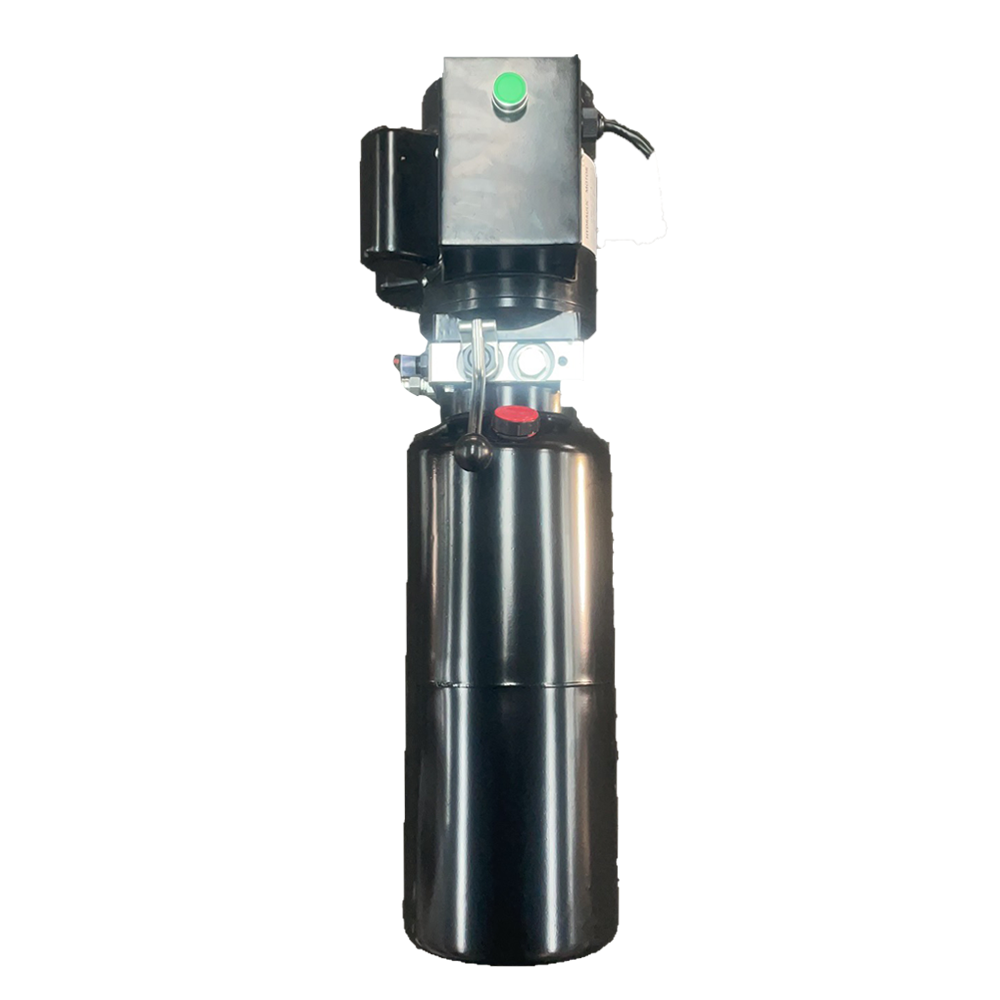

Designed for commercial shops and serious service environments, the KT-AM120SD combines lifting power with practical usability. Public listings describe a 220V single-phase hydraulic system, with some sellers also noting an optional 110V configuration, plus a low 4.25–4.33 inch minimum pad height and approximately 70.86–70.87 inch maximum lifting height, making it suitable for both lower vehicles and taller service work.

Key Features

  • 12,000 lb lifting capacity for cars, trucks, and SUVs

  • Asymmetric arm design for easier vehicle positioning and door clearance

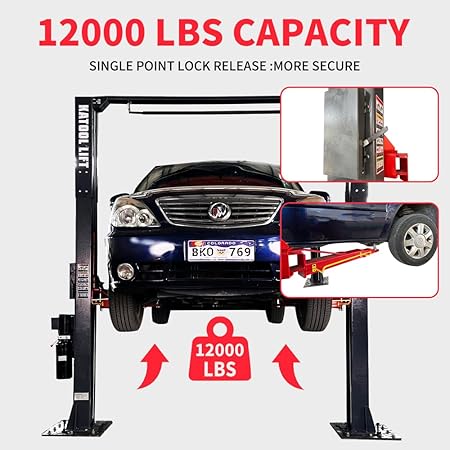

  • Single-point lock release for efficient operation

  • Clear-floor design for improved workspace access under the vehicle

  • Low pad height for servicing a wider range of vehicles

  • Built for professional repair shops, service centers, and fleet use

  • Heavy-duty hydraulic lifting performance for daily shop operation

Spec Sheet

Specification Details
Model KT-AM120SD
Brand Katool Automotive Equipment
Product Type Two Post Lift

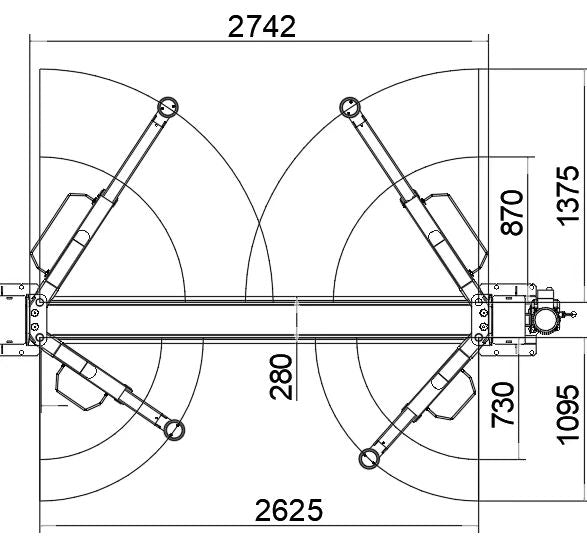

Lift Configuration Clear-floor / asymmetric arms
Lifting Capacity 12,000 lbs

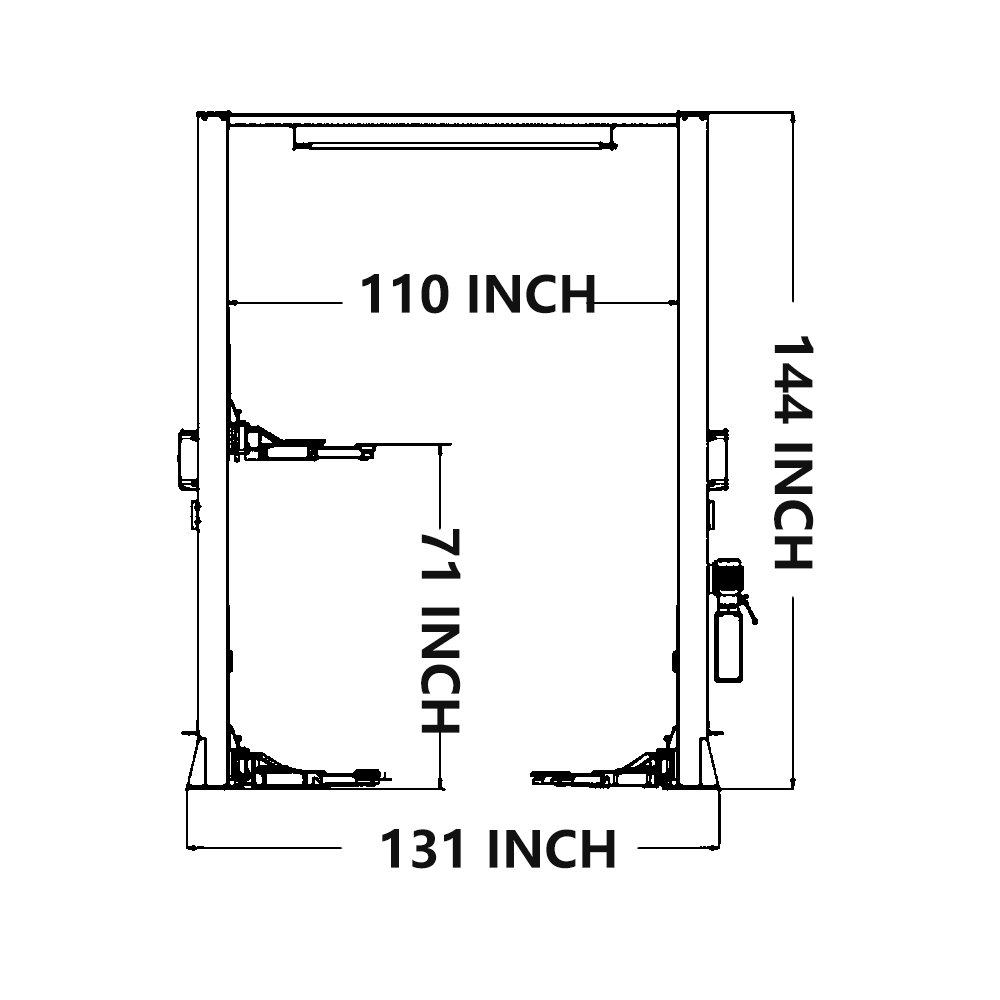

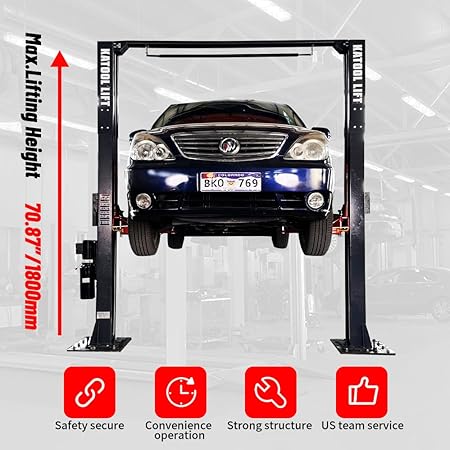

Max. Lifting Height 70.87 in / 1800 mm
Min. Lifting Height 4.25–4.33 in / 110 mm
Overall Height 143.7–144 in / 3650 mm
Drive-Thru Clearance 94 in
Motor Power 4.0 HP
Power Requirements 220V / 60Hz / 1PH
Locking Positions 12
Product Weight 1,369 lbs

Installation Requirements

  • Minimum concrete thickness: 5.9 in / 150 mm

  • Minimum concrete strength: 3,000 PSI

Materials

Q235 and Q245 steel

Shipping

Please review carefully before placing your order.

** Please be aware of seasonal shipping and pick up order delays. Orders may take up to 3 weeks to arrive or be available to pick up.

Now offering shipping to Alaska and Hawaii. Please contact us for a shipping quote before ordering.

Shipping Coverage

  • Freight shipping only within the lower 48 states.
  • Fulfillment times are 6-10 business days.
  • Free shipping applies to:Tire Changers, Tire Balancers, Shop Tool Equipment, and Scissor Lifts → delivered to commercial addresses or the nearest carrier terminal.
  • Two-Post and Four-Post Lifts:Customer must provide a forklift for unloading.Please make sure to select the correct shipped or pick up option BEFORE ADDING THE ITEM TO YOUR CART.If no forklift is available, we can arrange terminal delivery for pick-up instead.

Additional Services & Fees

  • Residential Delivery: $90
  • Liftgate Service: $90 (not available for two post, four posts, and select scissor lifts; contact us to confirm before ordering)

Customer Responsibilities

  1. Customers are responsible for unloading freight from the truck.
  2. A forklift or unloading dock service is strongly recommended.
  3. Customers are responsible for any re-delivery fees if the carrier cannot complete delivery.
  4. Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.

Inspection & Claims

  • Carefully inspect your order before signing the Bill of Lading or delivery receipt.
  • All visible damage or missing items must be noted on the delivery receipt at the time of delivery.
  • Report concealed damage or shortages to our Customer Service team within 48 hours of delivery.
  • If no issues are noted at delivery, the shipment will be considered received in satisfactory condition.

Read more information about shipment, please see our Shipping Policy.

Warranty

The purchasers of Autokato products (Autto) are protected by the manufacturer’s warranty. Autokato offers a one-year warranty on all product parts, and three year's warranty on product structure.

Free shipping on warranty parts. Labor is not included in warranty.

For the full warranty terms, disclaimer, and conditions - please contact the seller or send emails to info@autokato.com
