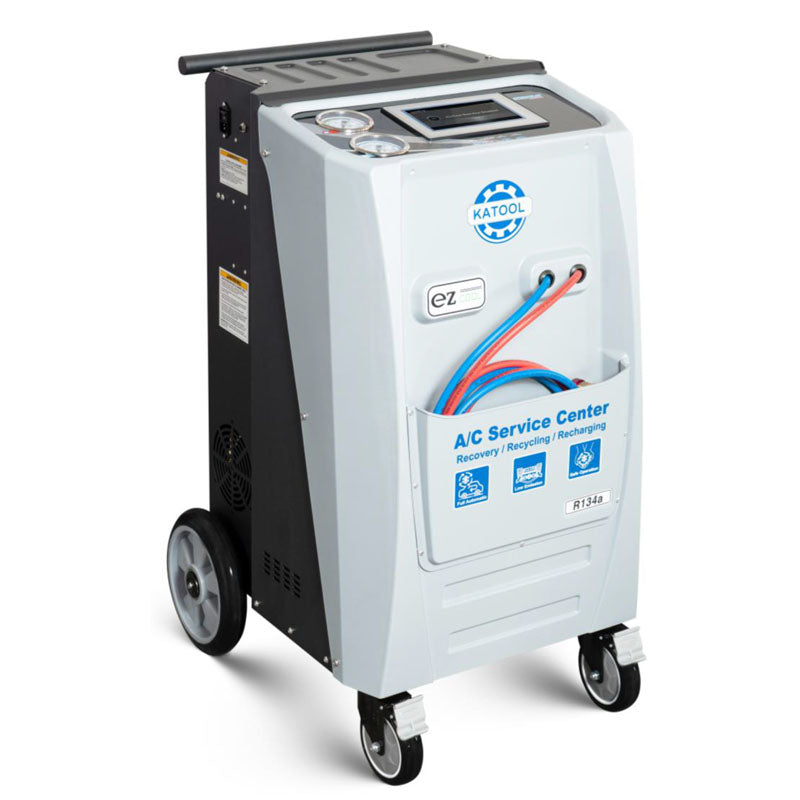

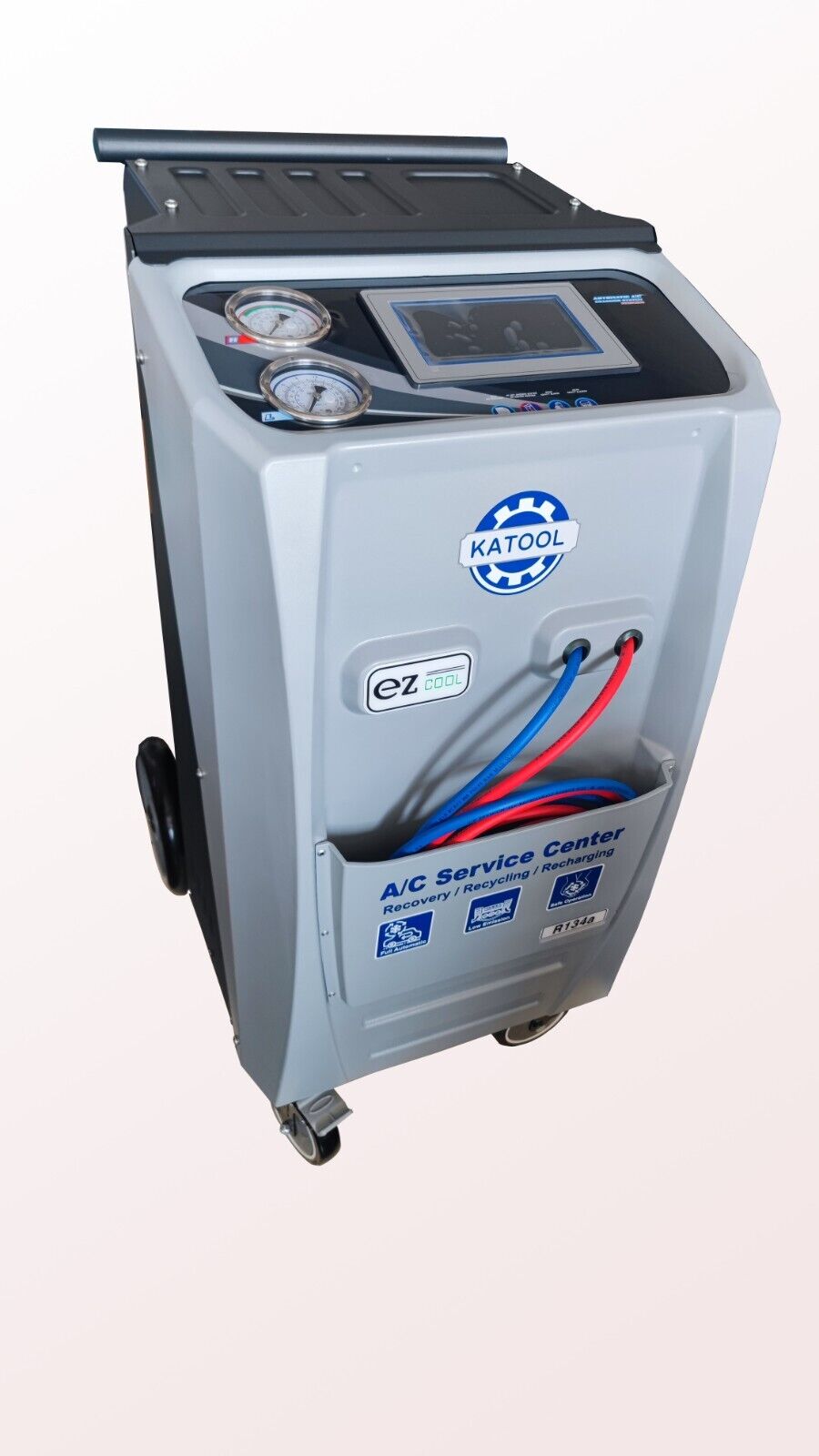

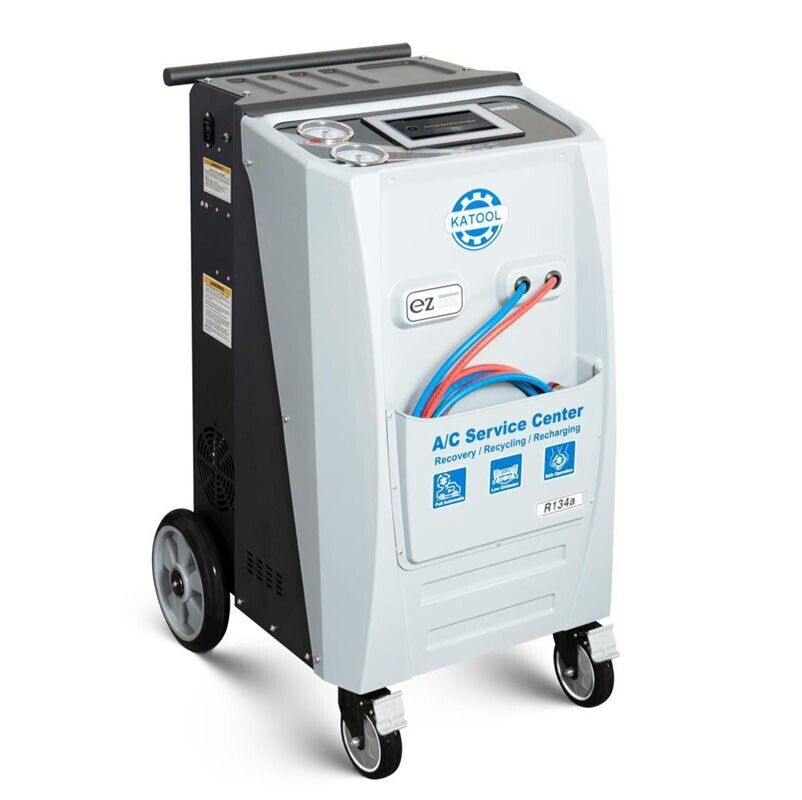

Fully Automatic R-134A Recovery, Recycle & Recharge DUAL AC1800 Machine
Fully Automatic R-134A Recovery, Recycle & Recharge DUAL AC1800 Machine
Couldn't load pickup availability
SHIPING POLICY:
- Freight shipping ONLY within the lower 48 states.
- Free shipping to commercial address.Shipping carrier could charge extra to residential Delivery or limited access.
- THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
- Customer should consider Forklift and unloading dock service.
- The buyer should be also responsible for any re-delivery charges.
- Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.

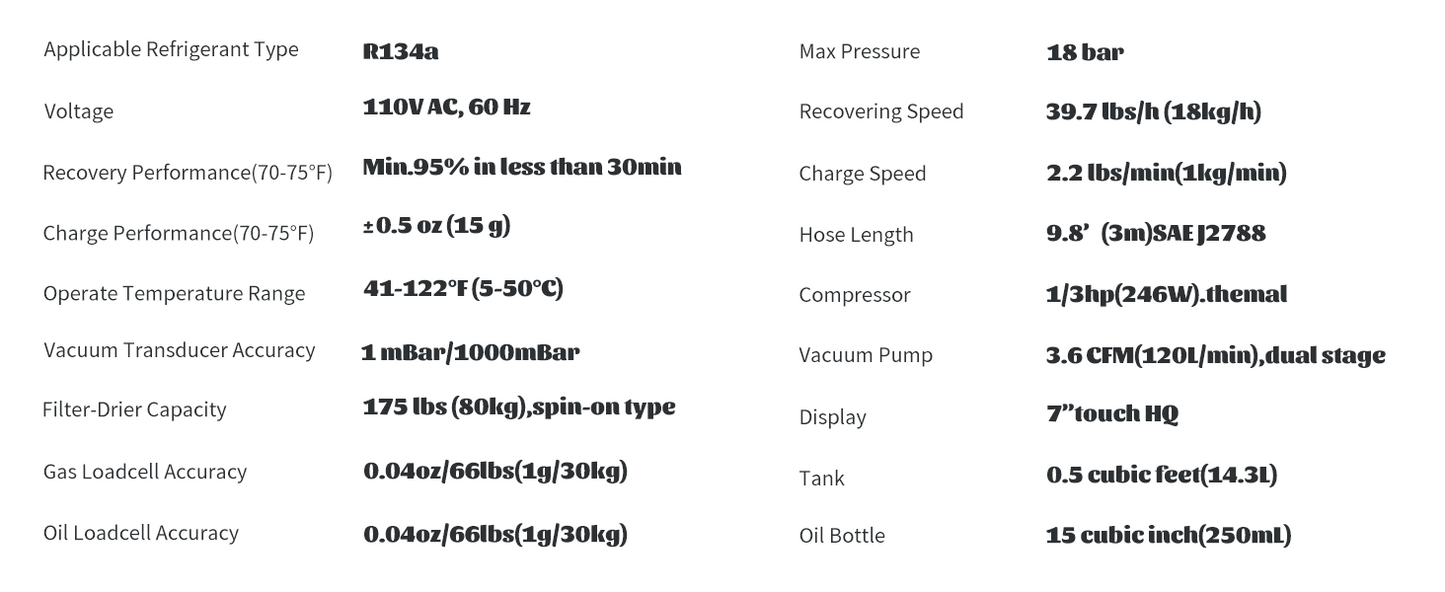

Technical Details
|
Applicable Refrigerant Type |
R134a |
|
Voltage |
110V AC, 60 Hz |
|
Recovery Performance(70-75°F) |
Min.95% in less than 30min |
|
Charge Performance(70-75°F) |
±0.5 oz (15 g) |
|
Operate Temperature Range |
41-122°F (5-50°C) |
|
Max Pressure |
18 bar |
|

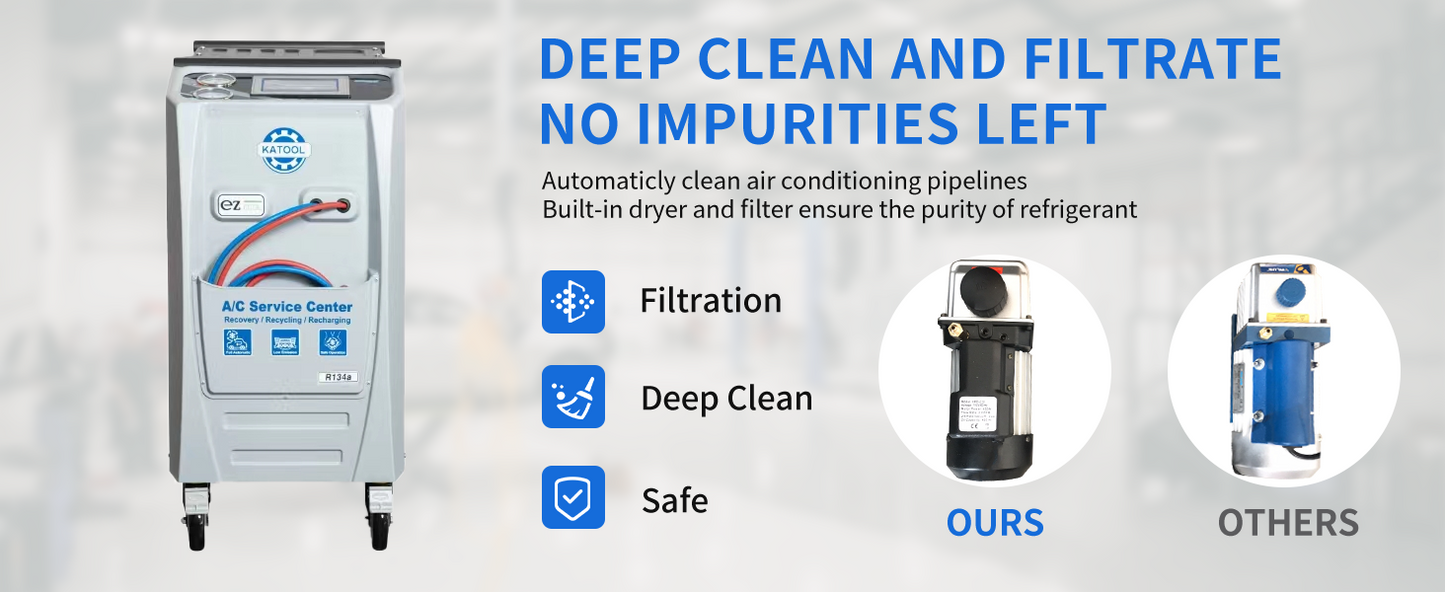

Filter-Drier Capacity |
175 lbs (80kg),spin-on type |
|
Gas Loadcell Accuracy |
0.04oz/66lbs(1g/30kg) |
|
Oil Loadcell Accuracy |
0.04oz/66lbs(1g/30kg) |
|
Vacuum Transducer Accuracy |
1 mBar/1000mBar |
|
Recovering Speed |
39.7 lbs/h (18kg/h) |
|
Charge Speed |
2.2 lbs/min(1kg/min) |
|
Hose Length |
9.8’(3m)SAE J2788 |
|
Compressor |
1/3hp(246W).themal protected,oiled,hermetically sealed |
|

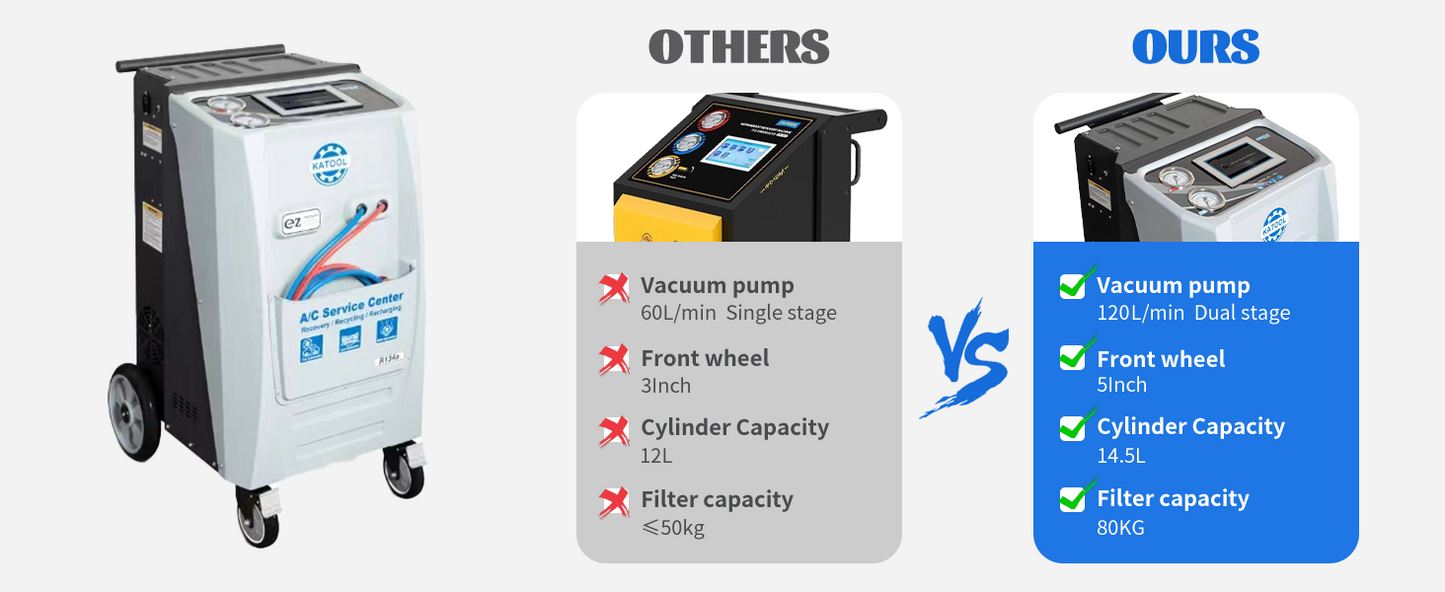

Vacuum Pump |
3.6 CFM(120L/min),dual stage |
|

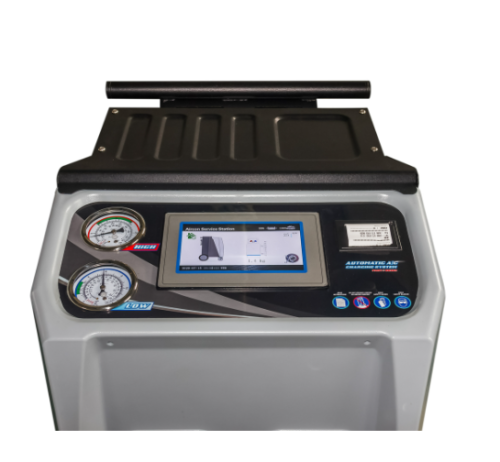

Display |
7”touch HQ |
|
Tank |
0.5 cubic feet(14.3L) |
|
Oil Bottle |
15 cubic inch(250mL) |
Additional information
|
Printer |
YES |
|
Heating Belt |
optional |
|
SD Database |
YES |
|
Vacuum Test |
YES |
|
Fan&Condenser |
YES |
|
Packing Size |
22”x 28”x41”(550x700x1050mm) |
|
Gross Weight |
240lb(110kg) |
Materials
Materials
Steel
Shipping
Shipping
Tire Changers, Tire Balancers, Shop Tool Equipment and Scissor Lifts: Free shipping to commercial addresses or nearby carrier terminals.
Two Post Lifts: $590 Flat rate shipping to commercial addresses. Customer is required to have a forklift.
Four Post Lifts: WAREHOUSE PICKUP ONLY. For custom shipping quotes, contact customer service.
Residential Delivery: $90
Liftgate: $90 (Not available for all products)
Read more information about shipment, please see our Shipping Policy.
Warranty
Warranty
The purchasers of Autokato products (Autto) are protected by the manufacturer’s warranty. Autokato offers a one-year warranty on all product parts, and three year's warranty on product structure.
Free shipping on warranty parts. Labor is not included in warranty.
For the full warranty terms, disclaimer, and conditions - please contact the seller or send emails to info@autokato.com
