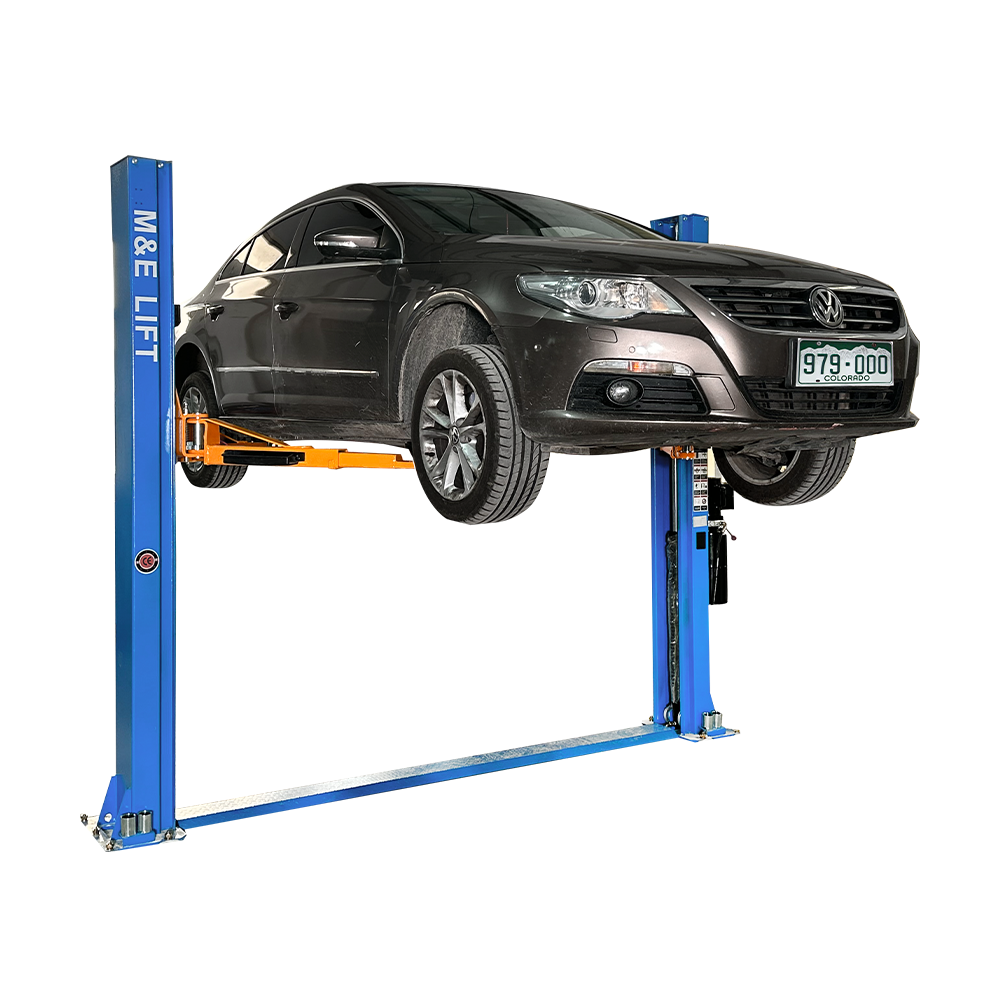

ME-H1000 Two Post Vehicle Lift 10,000 lbs

ME-H1000 Two Post Vehicle Lift 10,000 lbs

Regular price $2,199.00 USD
Regular price Sale price $2,199.00 USD
Sale Sold out

2 Post Lift ME-H10000

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.



12 Months All Parts Warranty!


Lifting Capacity
10000lbs.(4500KG)

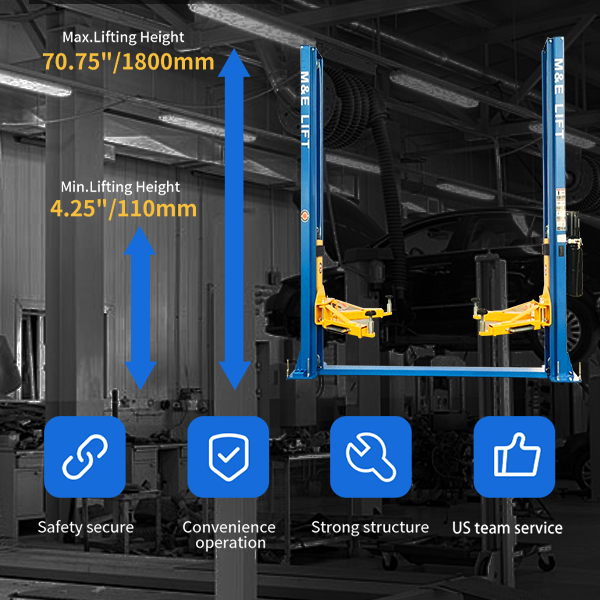

Max. Lifting Height
70.8"/1800mm
Min. Height
3.9"/100mm
Height Overall
110.9"/2818mm
Width Overall
140.4"/3565mm
Outside Column
124.8"/3170mm
Inside Column
110.2"/2800mm
Dirve-Thru Clearance
98.4"/2500mm
Front Arm Reach(Min)
29.5"/750mm(2 stages)
Front Arm Reach (Max)
46"/1170mm(2 stages)
Rear Arm Reach(Min)
35.4"/900mm(2 stages)
Rear Arm Reach(Max)
58.2"/1480mm(2 stages)
Motor
220VAC/60HZ/1PH/2.2KW
Net Weight
570KG

-10000lbs lifting capacity

-CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.

-Manual safety release from two side.

-Base plate design

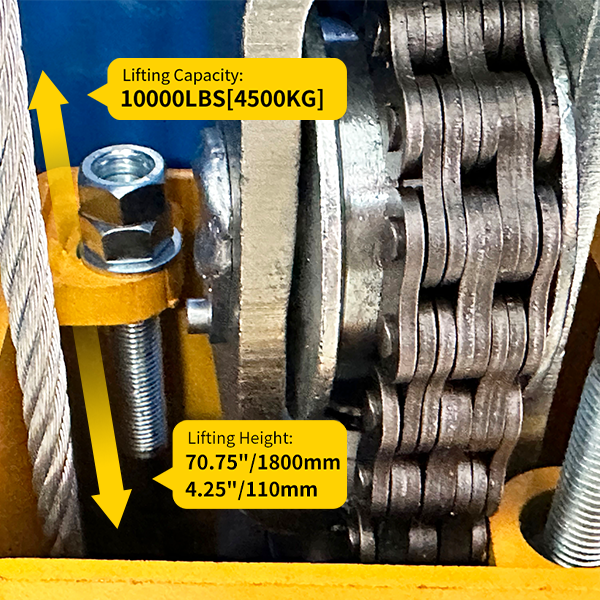

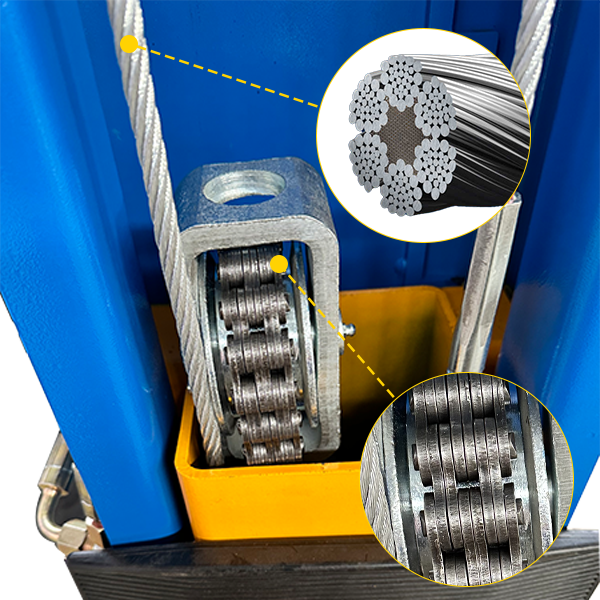

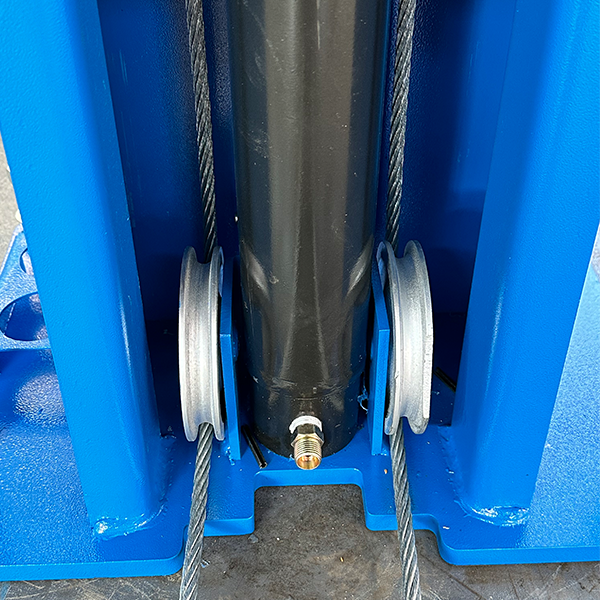

-Dual Hydraulic Chain-Drive Cylinders

-Robber pad door opening protection.

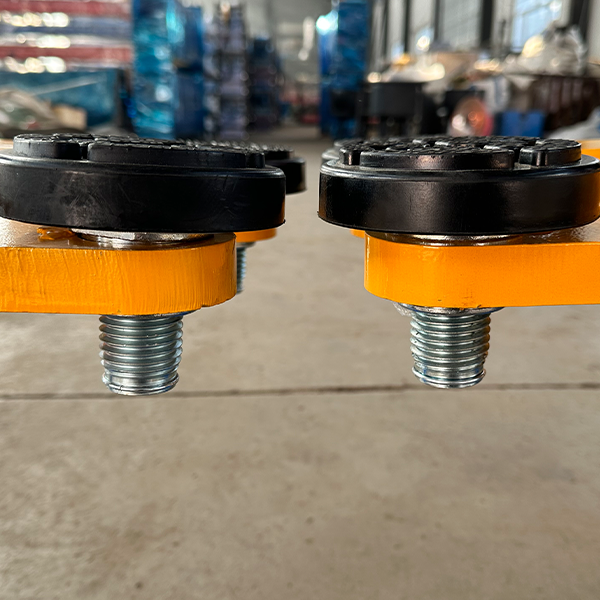

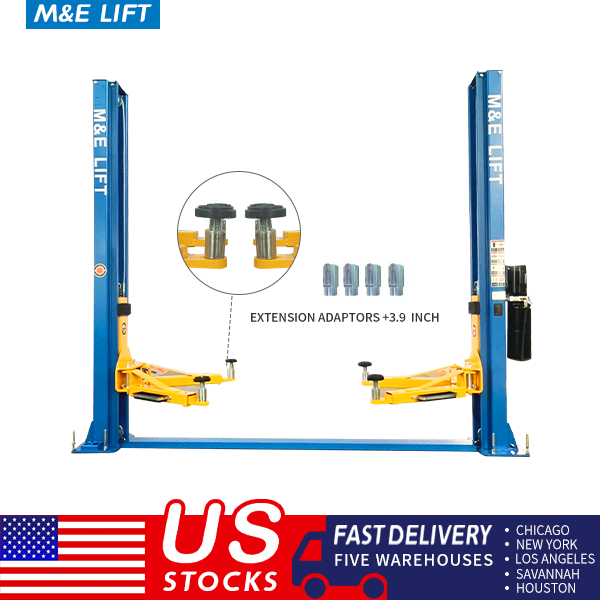

-Screw-on pad and extension support adaptor sets  +100mm

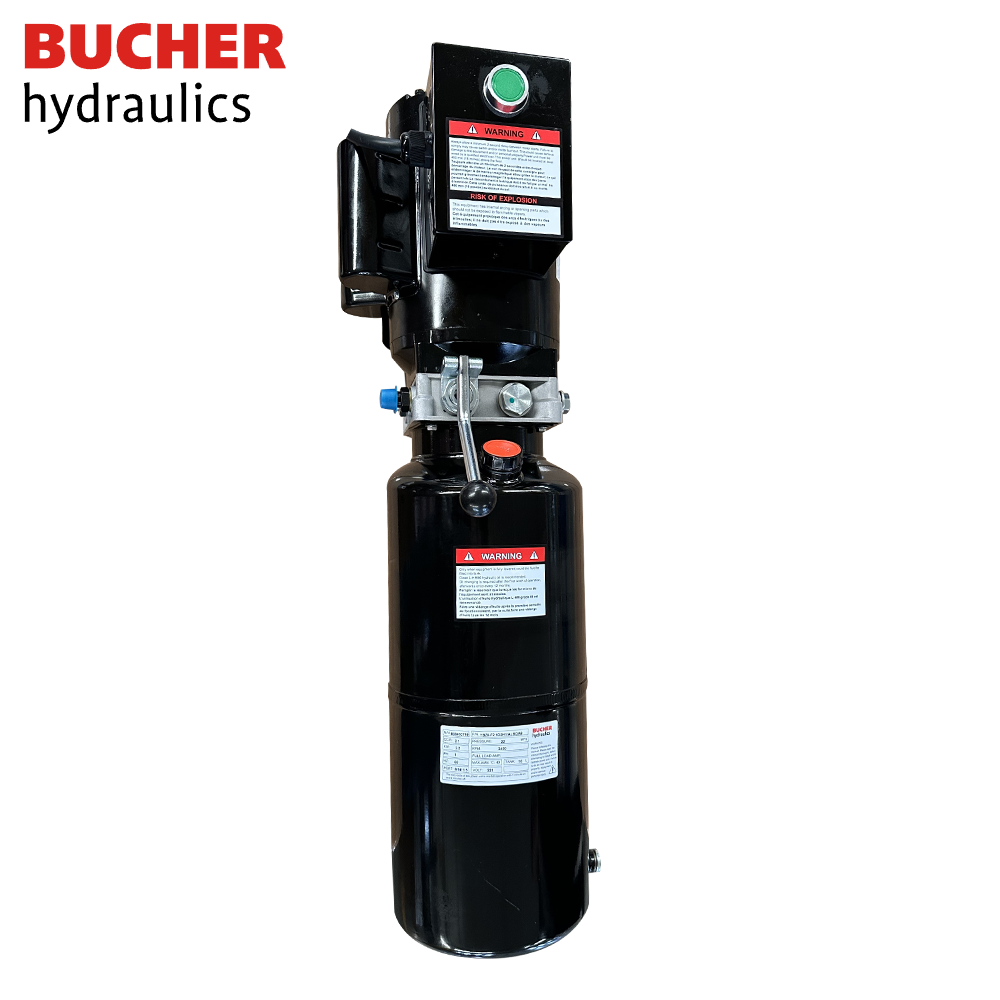

-Top level hydraulic system with 220V/60HZ/1PH



SHIPPING POLICY: Please read carefully



  • Freight shipping ONLY within the lower 48 states.
  • Two post lift products require a shipping fee ($590/piece) to commercial addresses only. Remote areas may be charged extra for shipping. Please confirm before delivery.
  • Shipping carrier may charge extra to residential Delivery.
  • THE BUYER IS RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
  • Customer should consider Forklift and unloading dock service.
  • The buyer should be also responsible for any re-delivery charges.
  • Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.

Materials

Steel

Shipping

Tire Changers, Tire Balancers, Shop Tool Equipment and Scissor Lifts: Free shipping to commercial addresses or nearby carrier terminals.

Two Post Lifts: $590 Flat rate shipping to commercial addresses. Customer is required to have a forklift.

Four Post Lifts: WAREHOUSE PICKUP ONLY. For custom shipping quotes, contact customer service.

Residential Delivery: $90

Liftgate: $90 (Not available for all products)

Read more information about shipment, please see our Shipping Policy.

Warranty

The purchasers of Autokato products (Autto) are protected by the manufacturer’s warranty. Autokato offers a one-year warranty on all product parts, and three year's warranty on product structure.

Free shipping on warranty parts. Labor is not included in warranty.

For the full warranty terms, disclaimer, and conditions - please contact the seller or send emails to info@autokato.com
