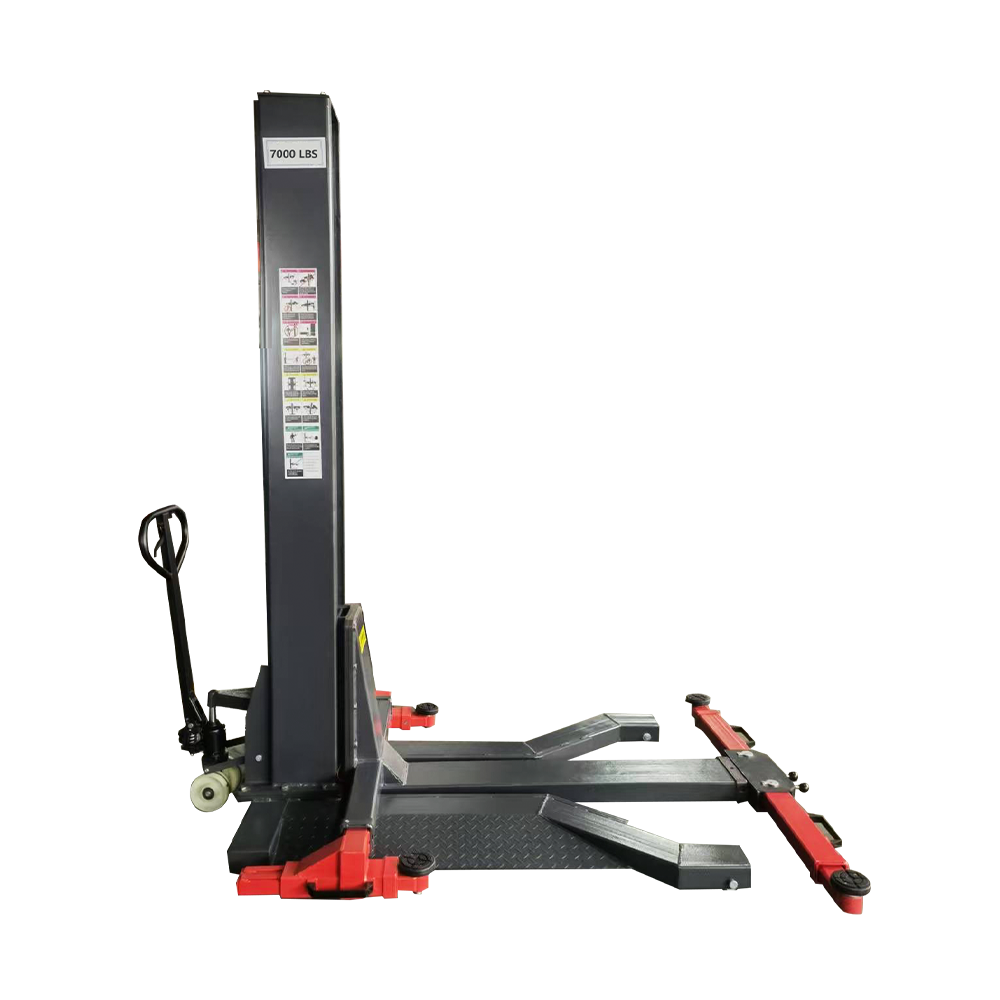

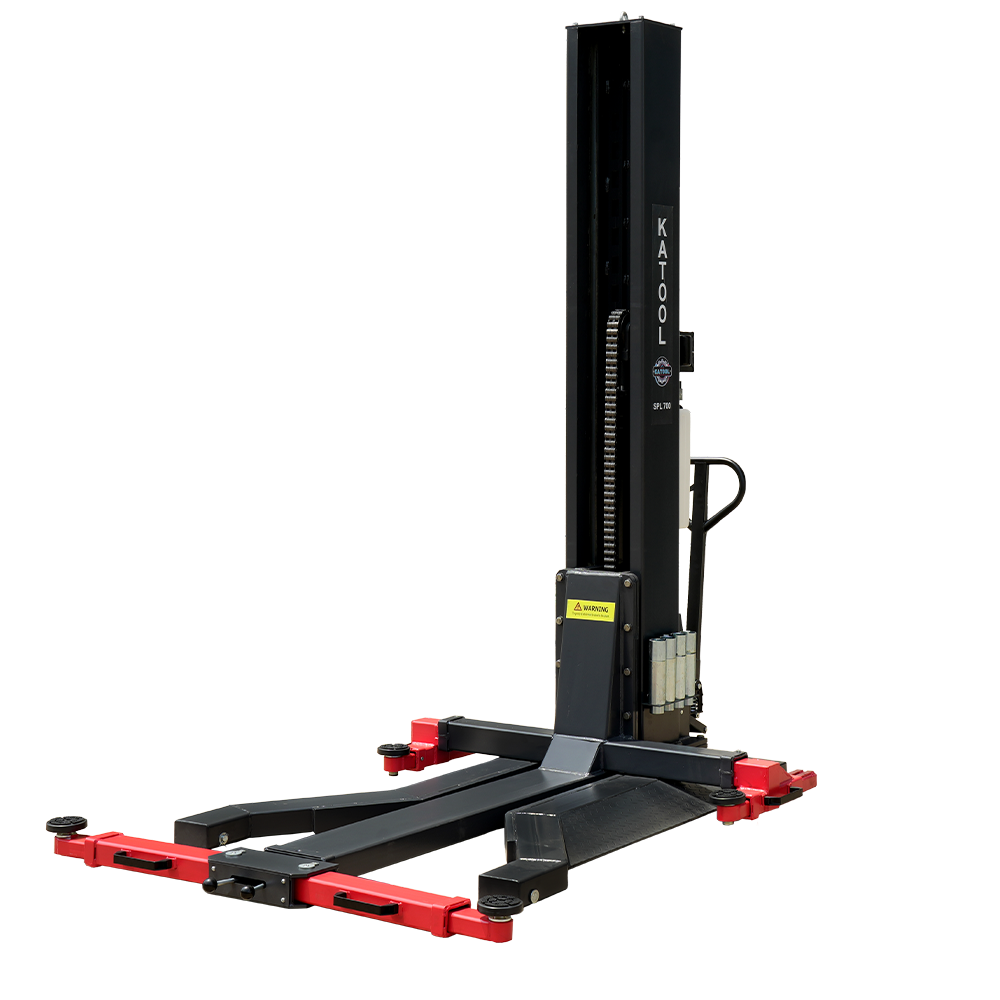

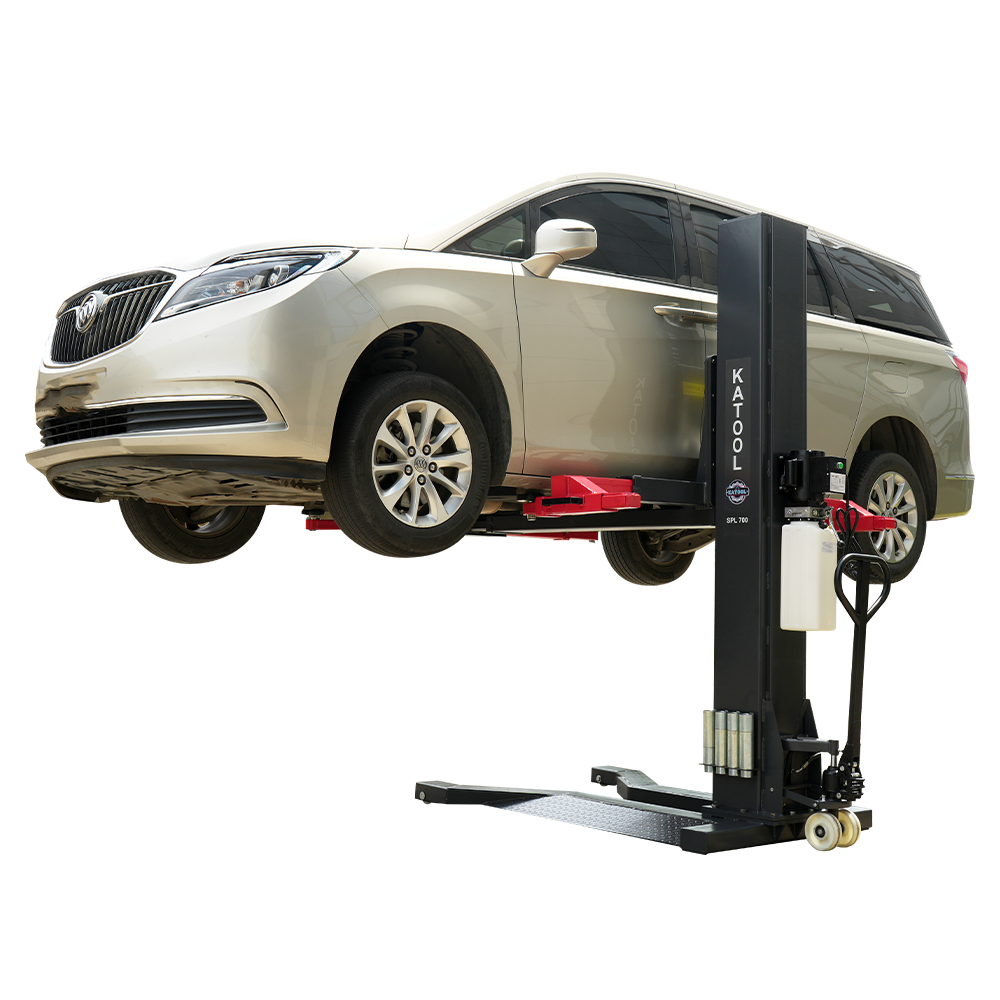

KT-SPL700 7,000lbs Single Post Lift
KT-SPL700 7,000lbs Single Post Lift
Couldn't load pickup availability
Description

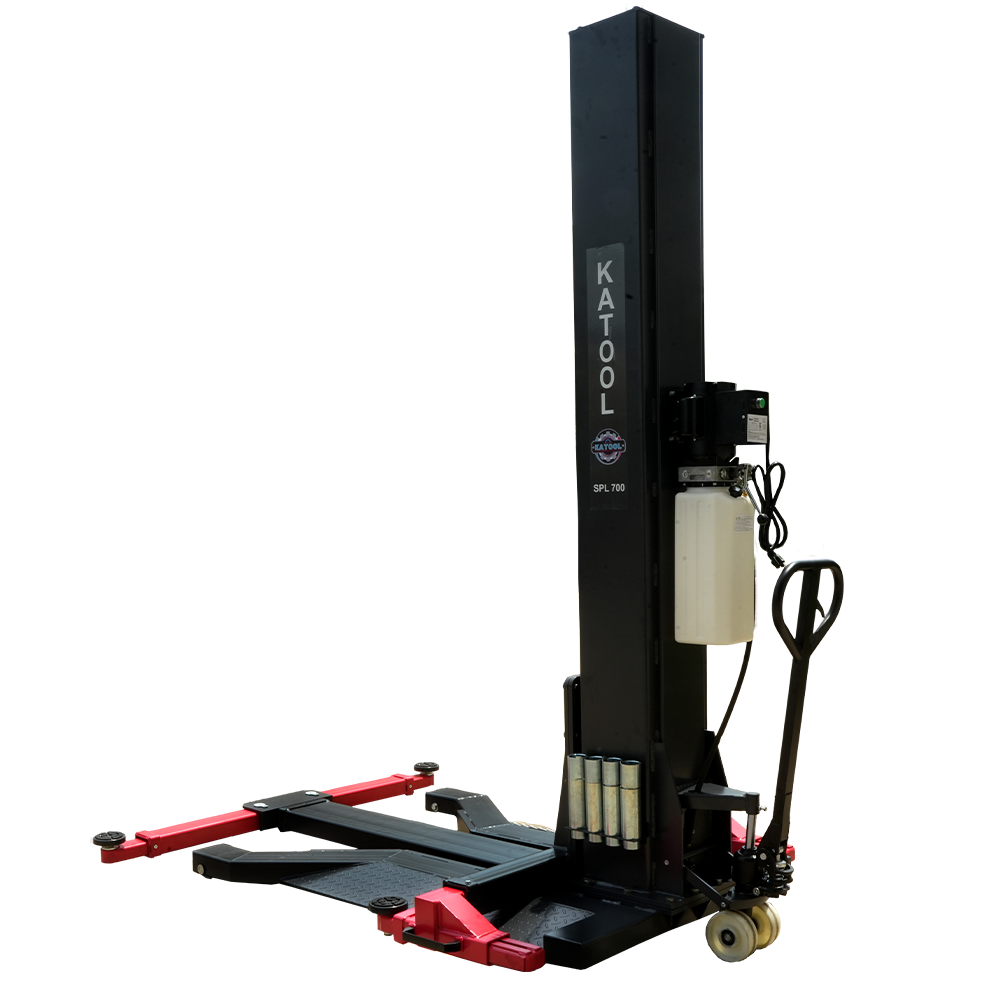

Upgrade your garage or professional shop with the Katool KT-SPL700 Single Post Vehicle Lift, a rugged and portable lifting solution designed for serious performance in tight spaces. Ideal for home garages, specialist workshops, mobile technicians, and service bays, this lift combines a compact footprint with heavy-duty capacity and user-friendly operation.

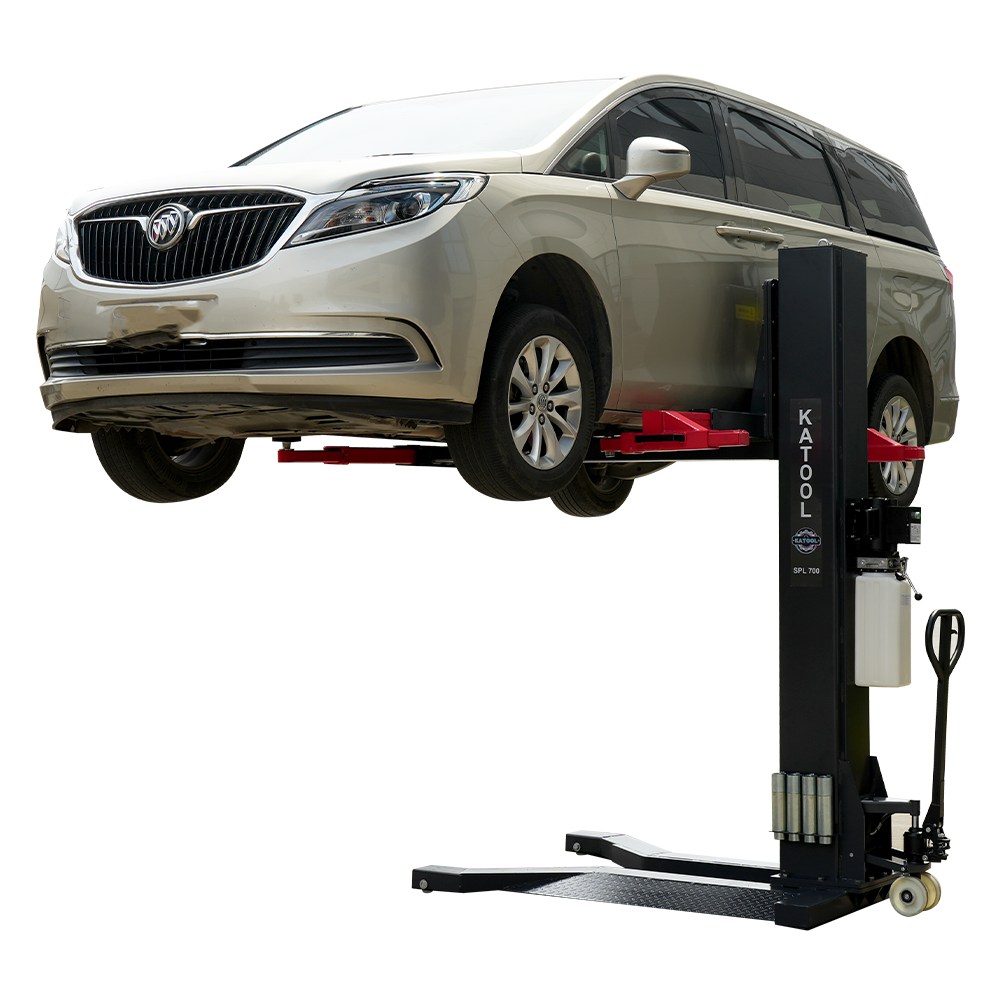

Built to handle up to 7,000 lbs of vehicle weight with confidence, the KT-SPL700 delivers smooth hydraulic lifting on standard 110V power — no special electrical setup required. Its space-saving single-post design gives you excellent access around the wheels and undercarriage, making tire, brake, suspension, and maintenance jobs easier and safer. Durable steel construction and adjustable lifting pads allow compatibility with a wide range of cars, SUVs, and light trucks.
Whether you’re working on client vehicles or your own ride, the KT-SPL700 offers dependable performance, versatility, and mobility to get the job done right.
Key Features
-

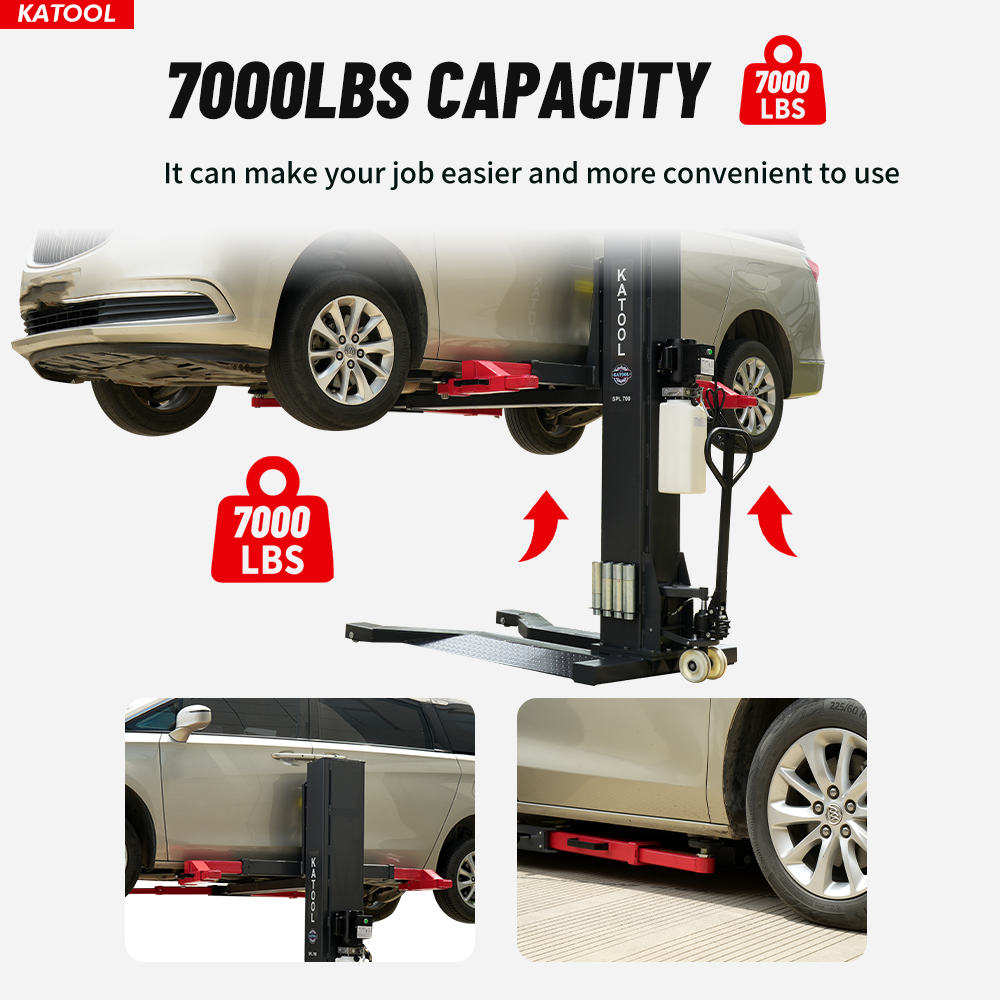

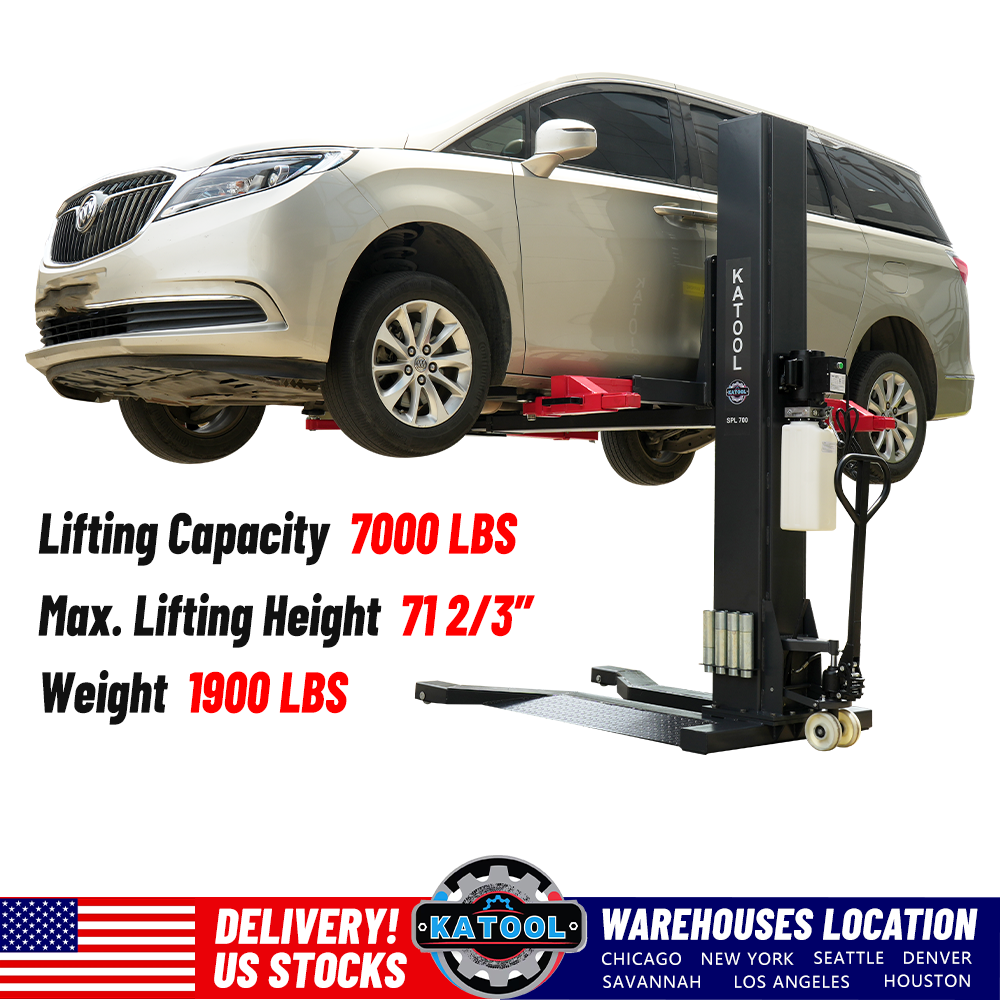

Heavy-Duty 7,000 lb (≈3,175 kg) lifting capacity — supports cars, SUVs, and light trucks.
-
Max lifting height: up to ~72 inches (≈6 ft).
-
Compact footprint design — ideal for shops with limited space.
-
Low-profile drive-on arms for low-clearance vehicles.
-

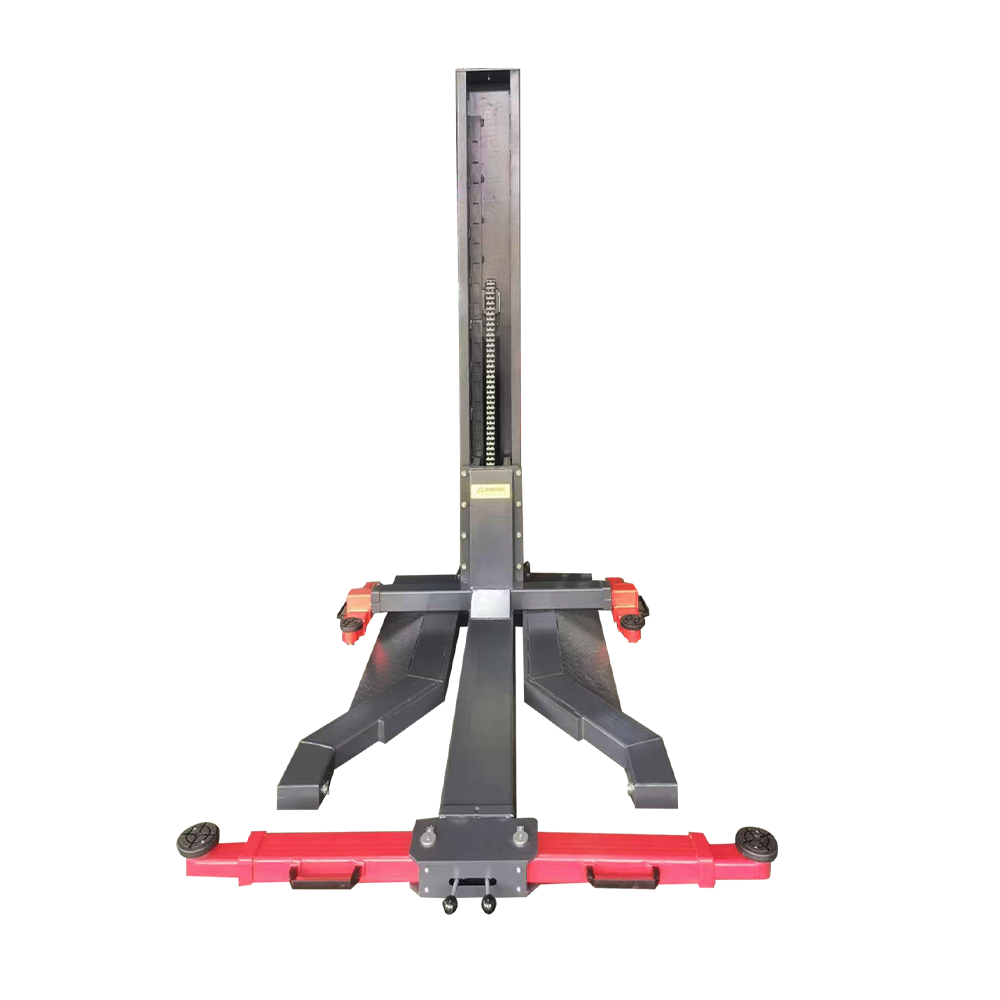

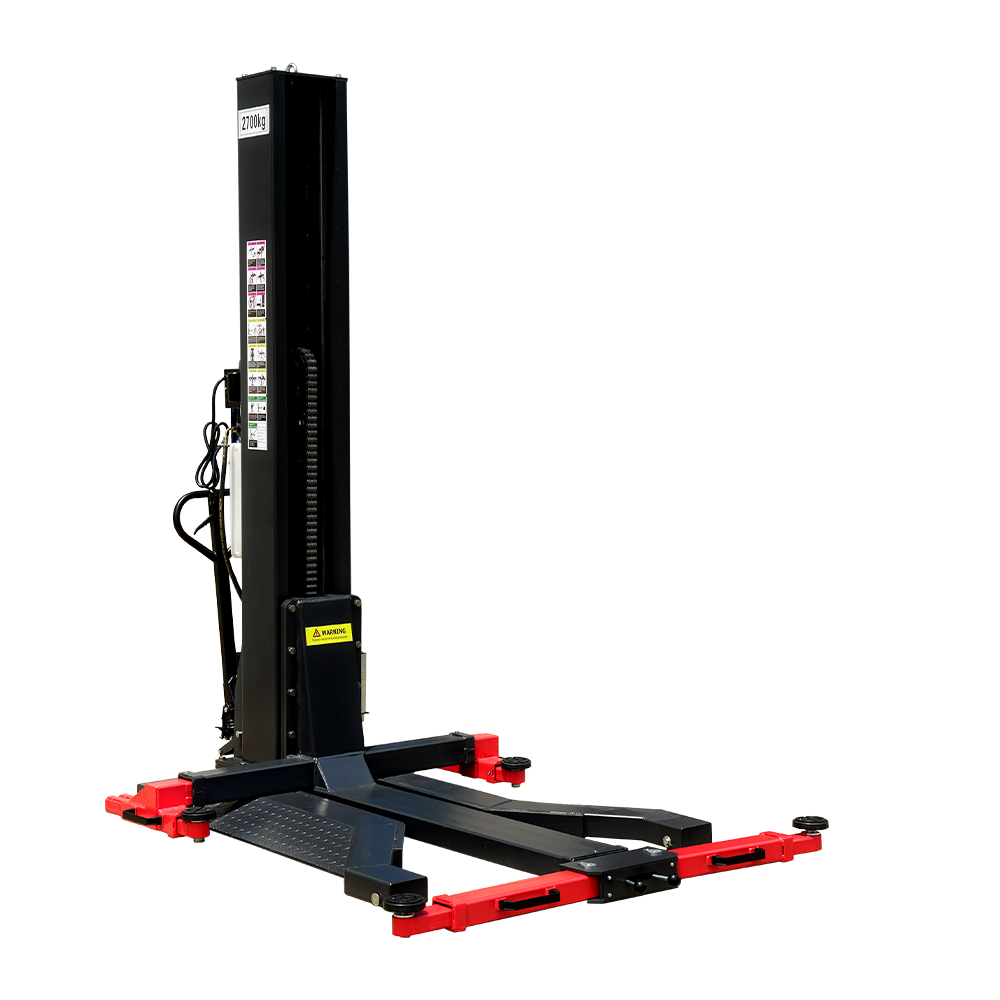

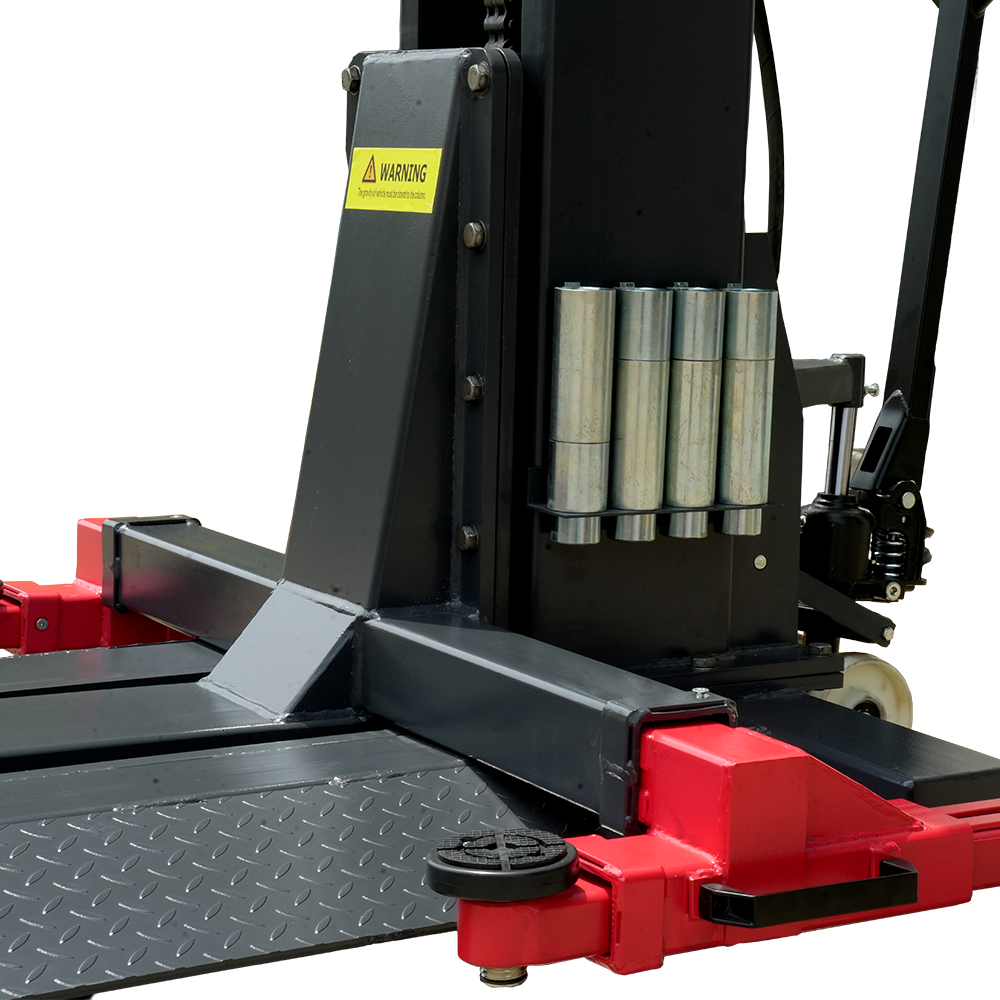

Portable single-post steel construction with caster wheels for easy repositioning.
-

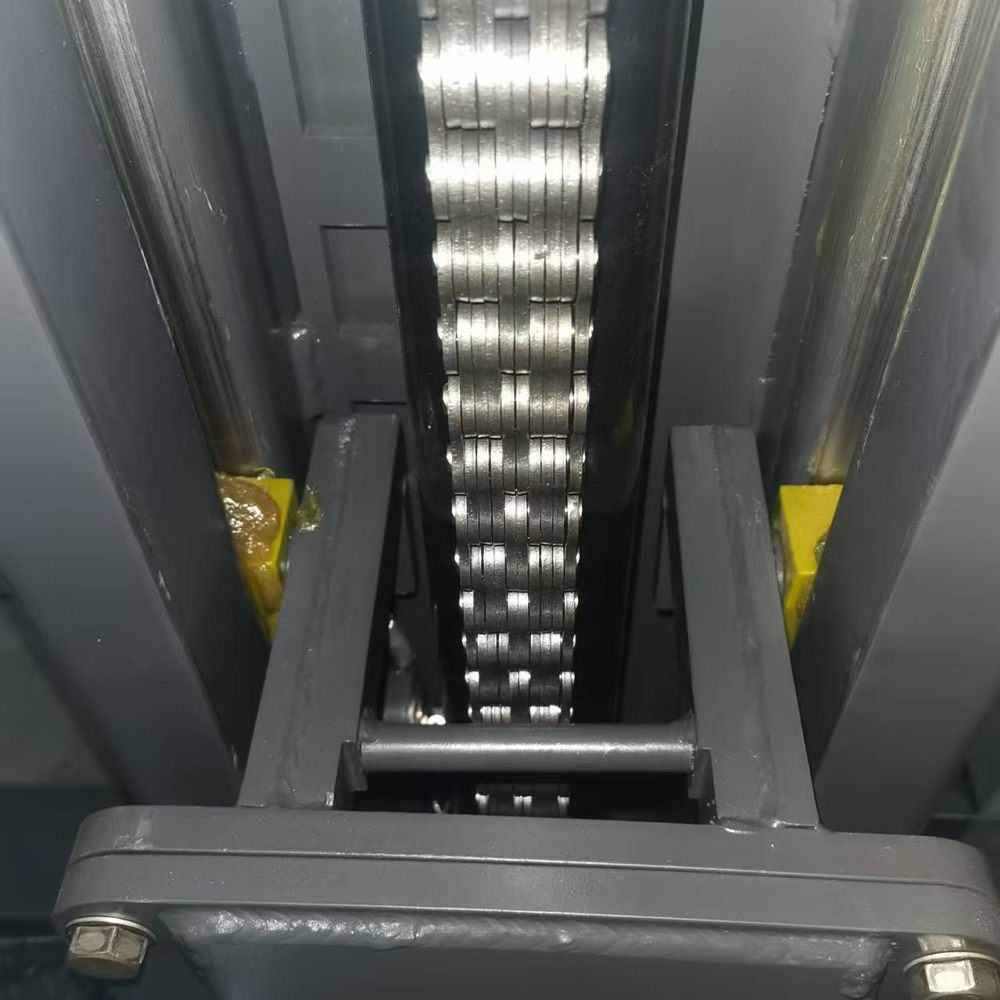

Stable automatic safety lock system ensures secure lifting at every height.
-
Heavy-duty alloy steel build for long-lasting durability.
-

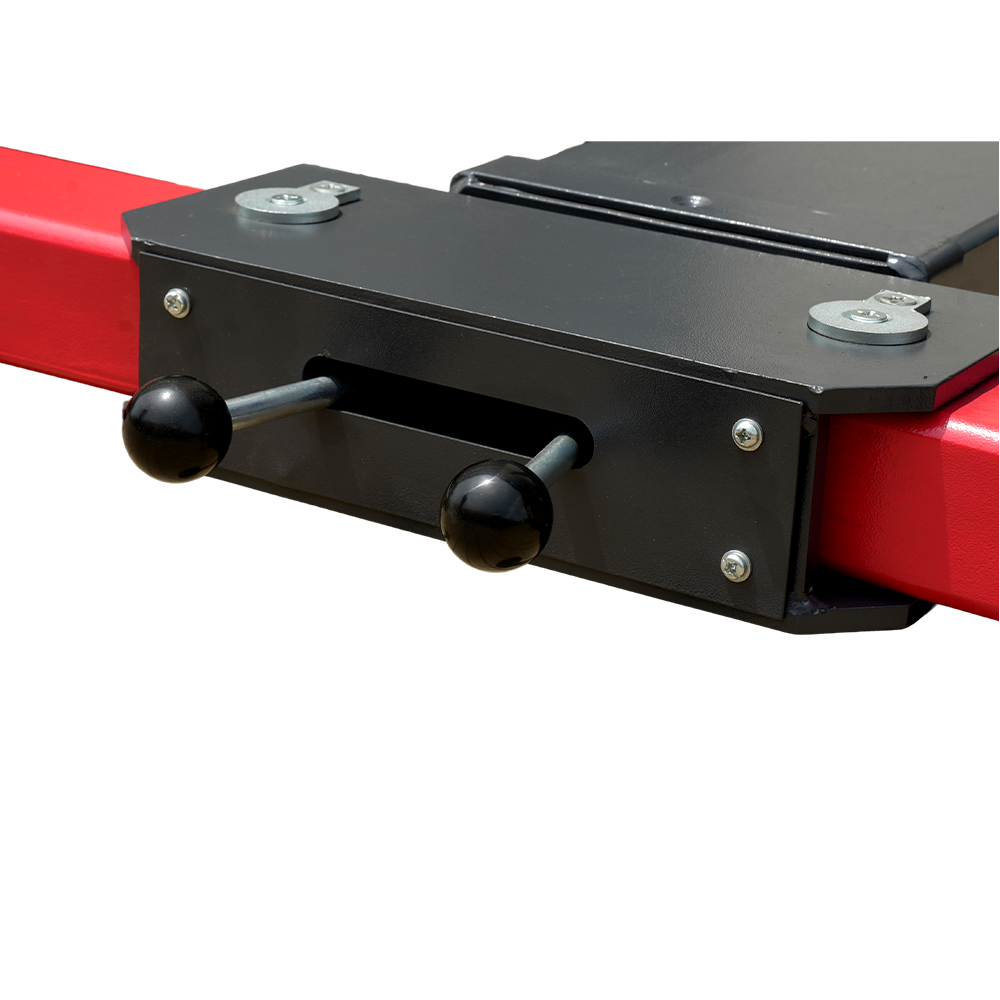

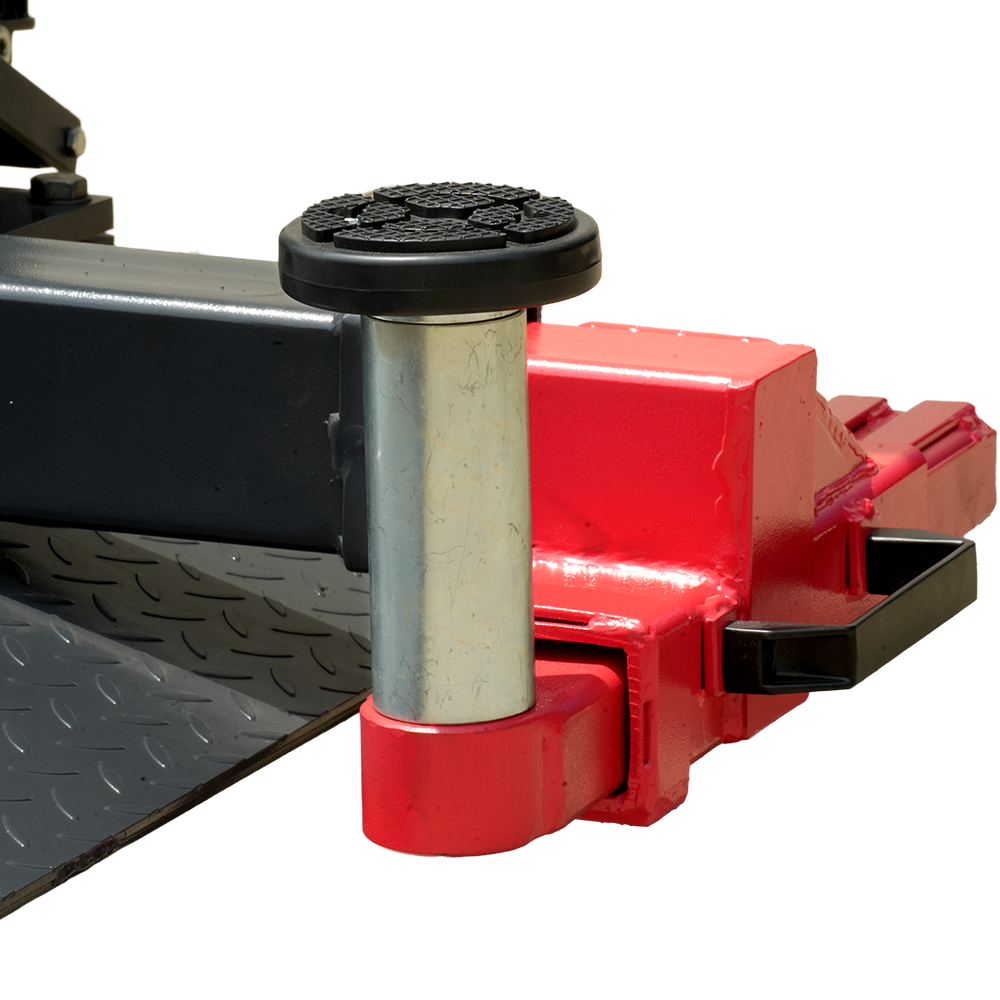

Adjustable lifting pad reach to fit a wide range of vehicle widths.
-
110 V single-phase motor (typically ~3 HP) — compatible with standard garage power.
-
Simple hydraulic operation for smooth lifting cycles.
-
Requires a forklift or similar equipment for initial offloading.

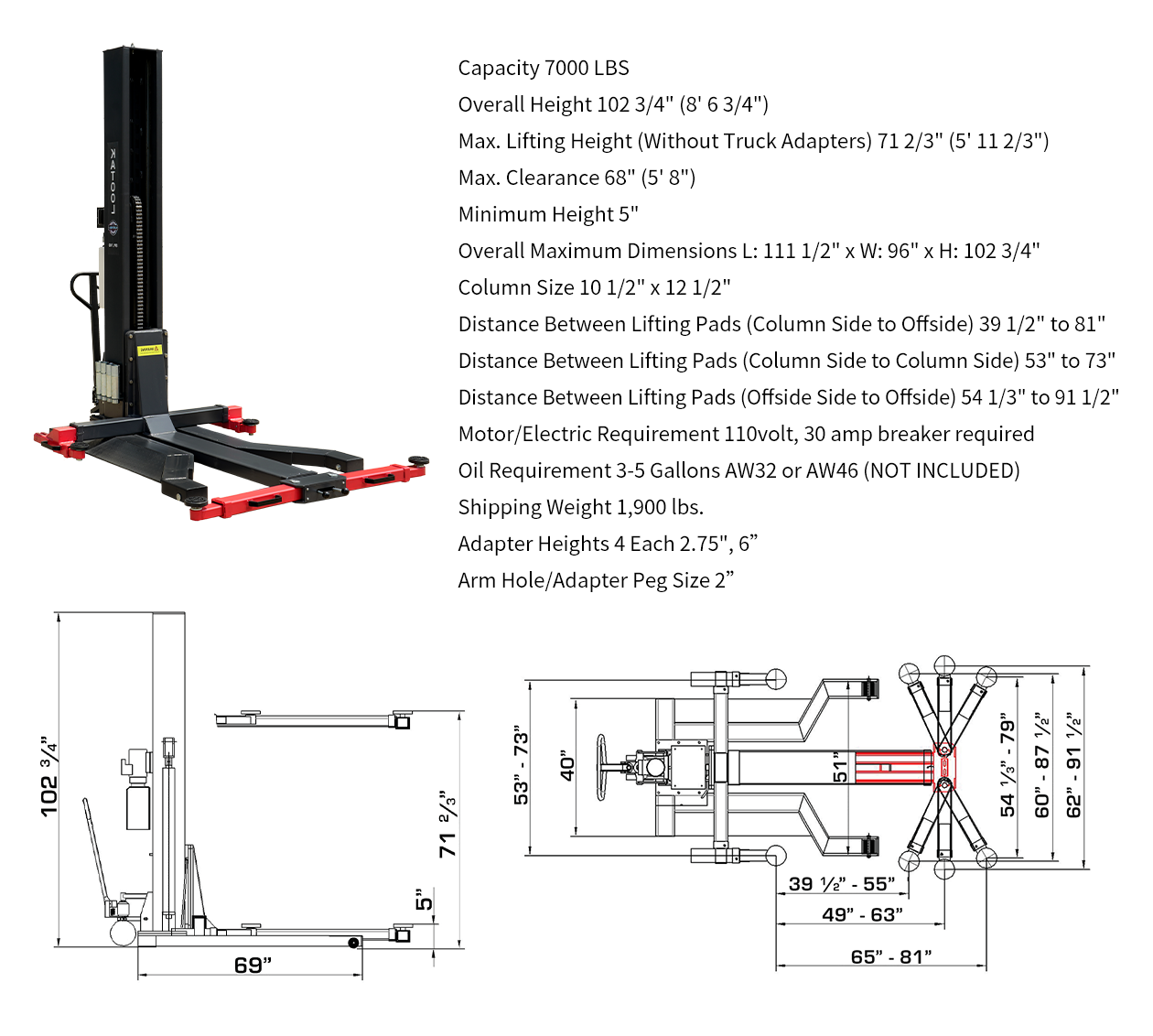

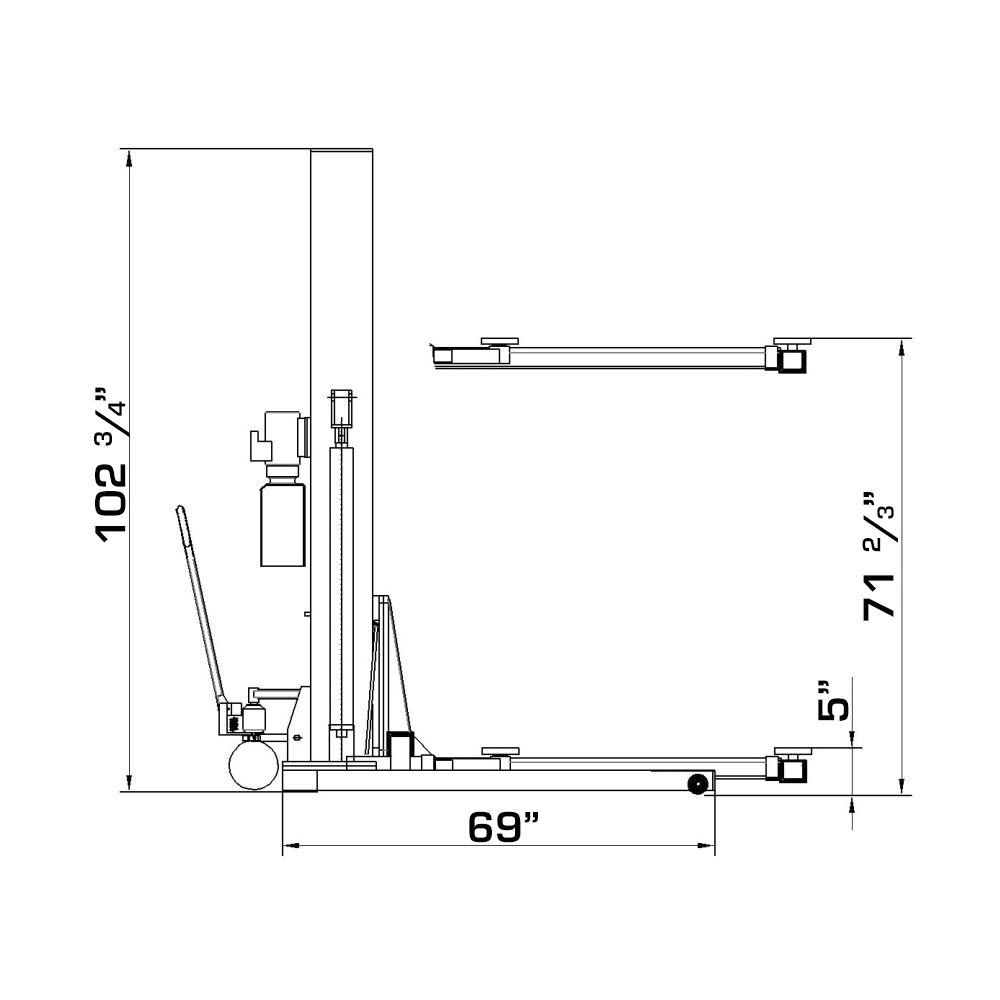

| Specification | Details |
|---|---|

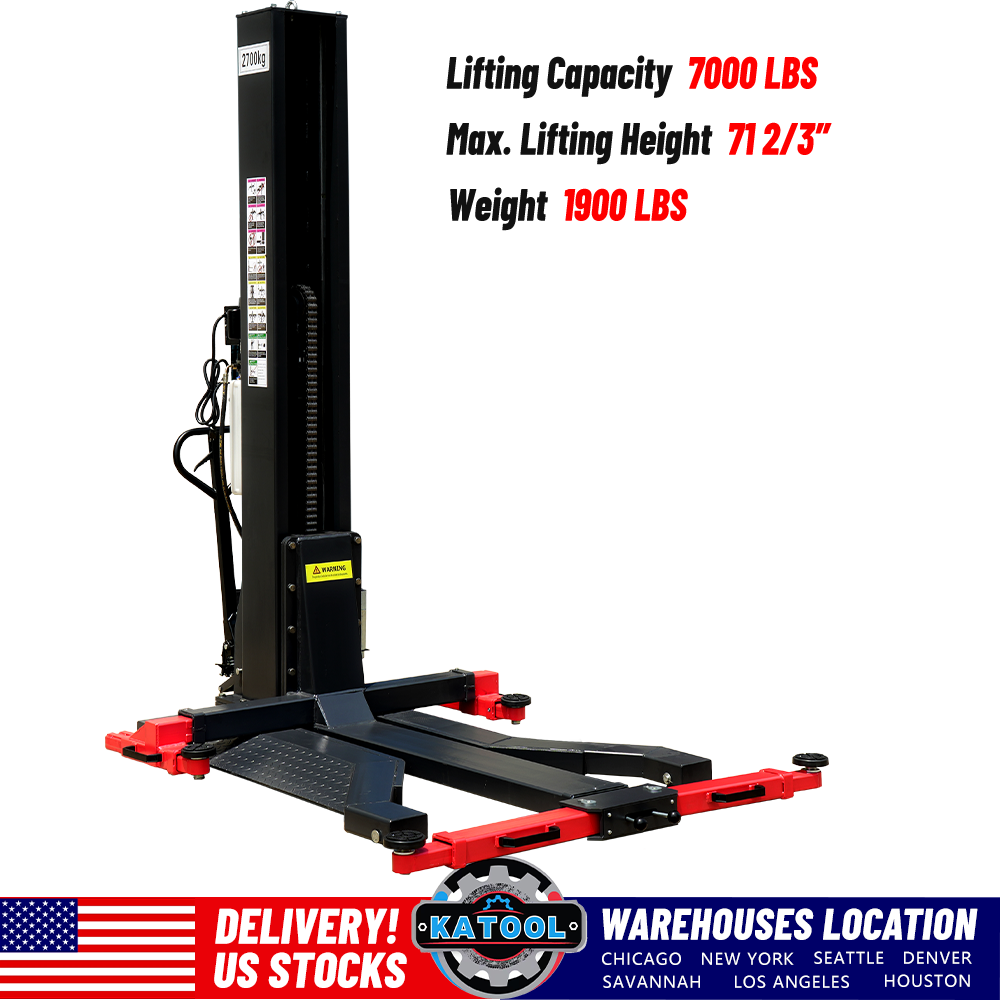

| Lifting Capacity | 7,000 lbs (3,175 kg) |
| Max Lifting Height (No Adapters) | 71 2/3″ (5′ 11 ⅔″) |
| Max Clearance Height | 68″ (5′ 8″) |
| Minimum Pad Height | 5″ |

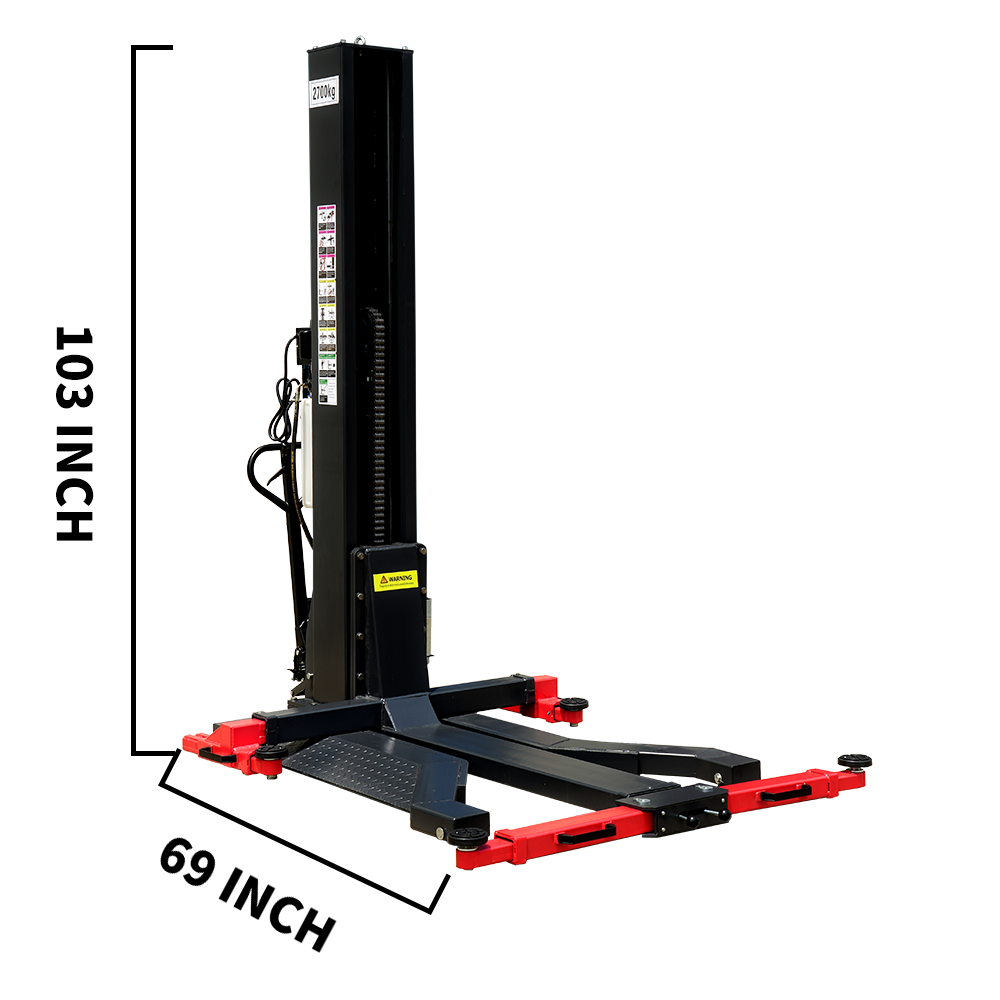

| Overall Height | 102 3/4″ (8′ 6 ¾″) |
| Overall Dimensions (L×W×H) | 111 1/2″ × 96″ × 102 3/4″ |
| Column Size | 10 1/2″ × 12 1/2″ |

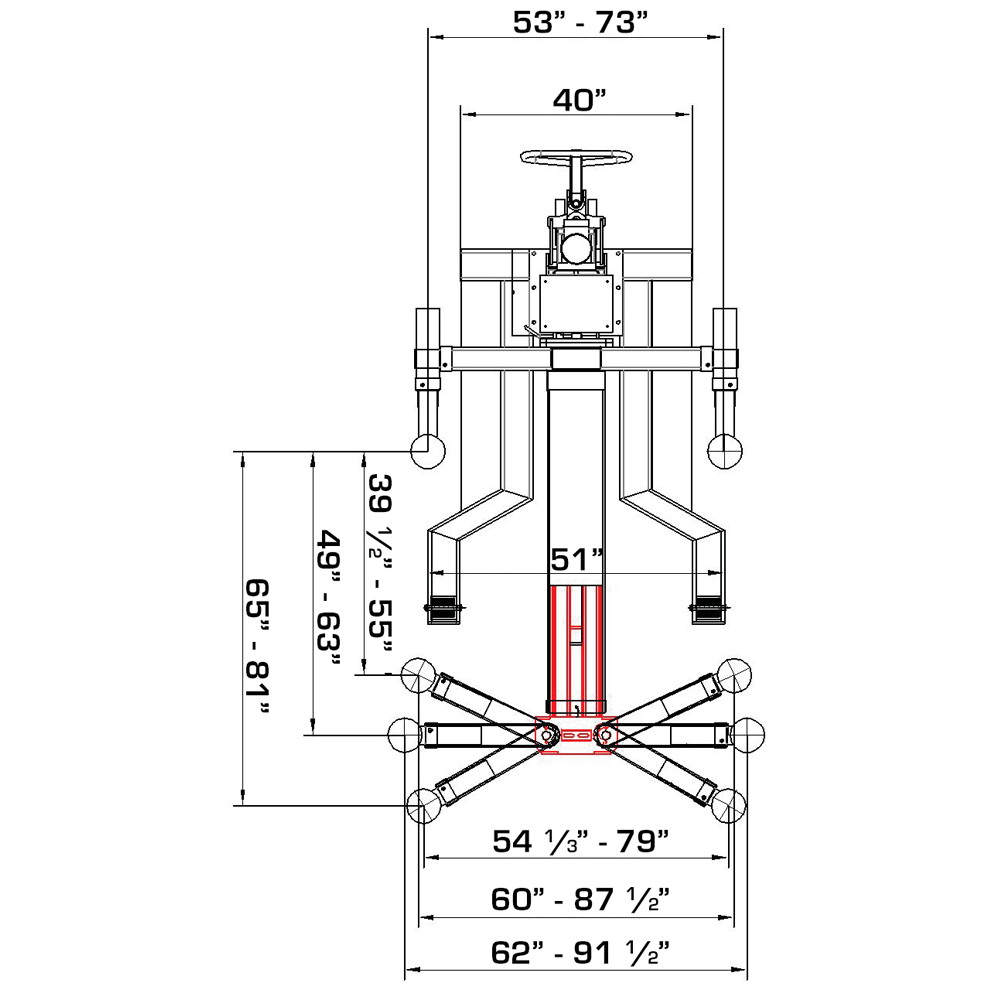

| Pad Distance (Column-Offside) | 39 1/2″ – 81″ |
| Pad Distance (Column-Column) | 53″ – 73″ |
| Pad Distance (Offside-Offside) | 54 1/3″ – 91 1/2″ |
| Motor/Electrical Requirement | 110 V, 30 A breaker |
| Hydraulic Fluid Requirement | 3 – 5 gal AW32 or AW46 (not included) |
| Shipping Weight | ~1,900 lbs |
| Adapter Heights Included | (4) 2.75″ & (4) 6″ |
| Adapter Peg Size | 2″ |
| Power Type | 110 V hydraulic operation |
Materials
Materials
Q235 and Q245 steel
Shipping
Shipping
Please review carefully before placing your order.
** Please be aware of seasonal shipping and pick up order delays. Orders may take up to 3 weeks to arrive or be available to pick up.
Now offering shipping to Alaska and Hawaii. Please contact us for a shipping quote before ordering.
Shipping Coverage
- Freight shipping only within the lower 48 states.
- Fulfillment times are 6-10 business days.
- Free shipping applies to:Tire Changers, Tire Balancers, Shop Tool Equipment, and Scissor Lifts → delivered to commercial addresses or the nearest carrier terminal.
- Two-Post and Four-Post Lifts:Customer must provide a forklift for unloading.Please make sure to select the correct shipped or pick up option BEFORE ADDING THE ITEM TO YOUR CART.If no forklift is available, we can arrange terminal delivery for pick-up instead.
Additional Services & Fees
- Residential Delivery: $90
- Liftgate Service: $90 (not available for two post, four posts, and select scissor lifts; contact us to confirm before ordering)
Customer Responsibilities
- Customers are responsible for unloading freight from the truck.
- A forklift or unloading dock service is strongly recommended.
- Customers are responsible for any re-delivery fees if the carrier cannot complete delivery.
- Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
Inspection & Claims
- Carefully inspect your order before signing the Bill of Lading or delivery receipt.
- All visible damage or missing items must be noted on the delivery receipt at the time of delivery.
- Report concealed damage or shortages to our Customer Service team within 48 hours of delivery.
- If no issues are noted at delivery, the shipment will be considered received in satisfactory condition.
Read more information about shipment, please see our Shipping Policy.
Warranty
Warranty
The purchasers of Autokato products (Autto) are protected by the manufacturer’s warranty. Autokato offers a one-year warranty on all product parts, and three year's warranty on product structure.
Free shipping on warranty parts. Labor is not included in warranty.
For the full warranty terms, disclaimer, and conditions - please contact the seller or send emails to info@autokato.com
