Combo 13: Tire Changer KT-T835 & Wheel Balancer KT-B700
Combo 13: Tire Changer KT-T835 & Wheel Balancer KT-B700

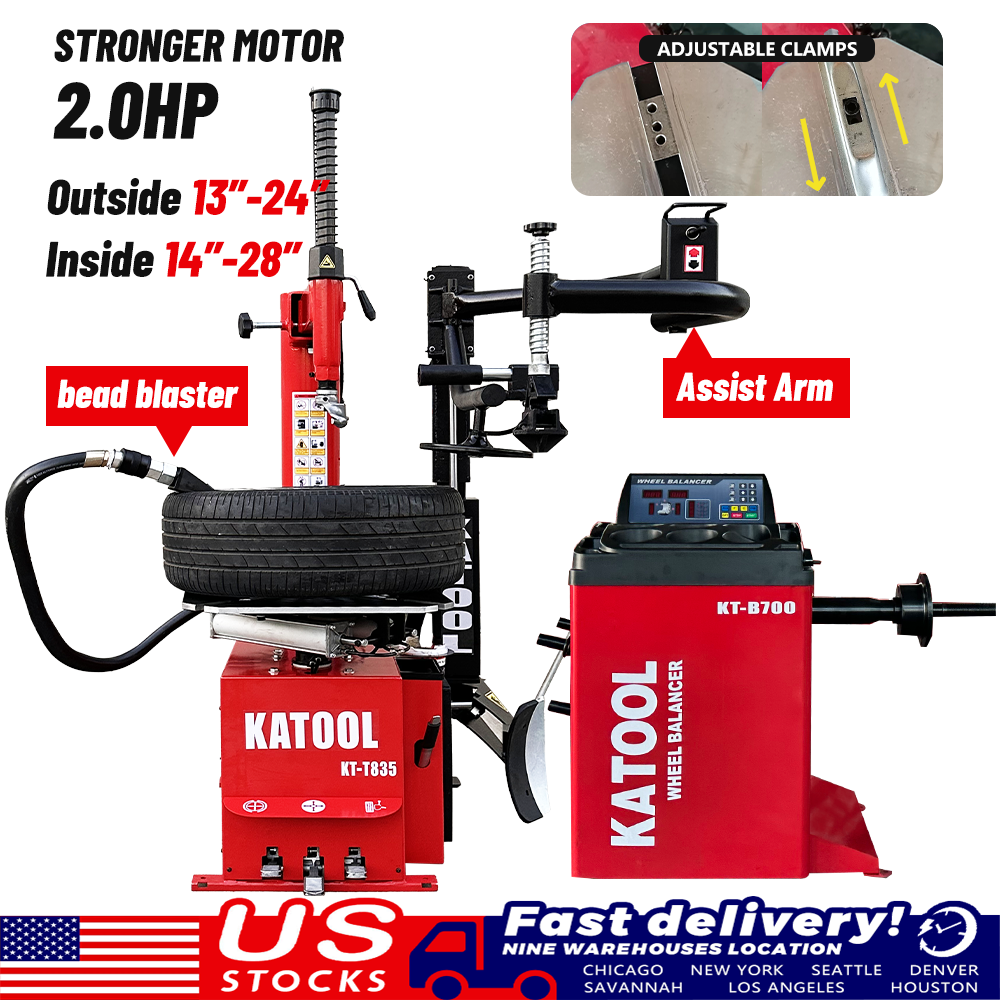

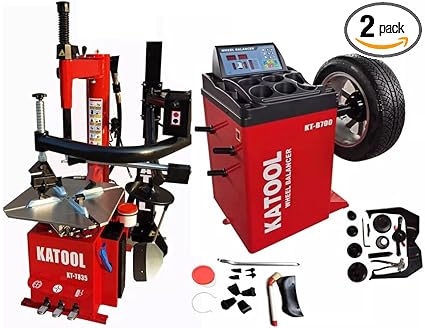

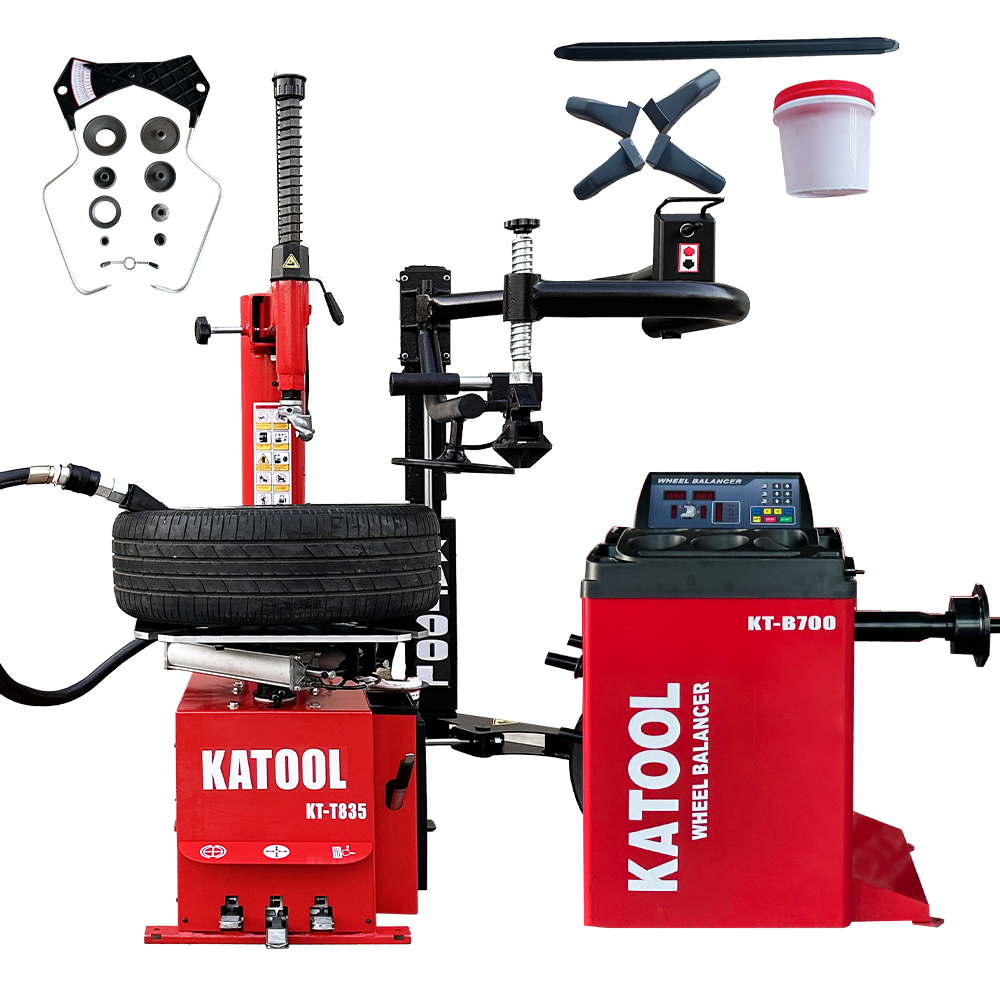

Tire Changer KT-T835 & Wheel Balancer KT-B700

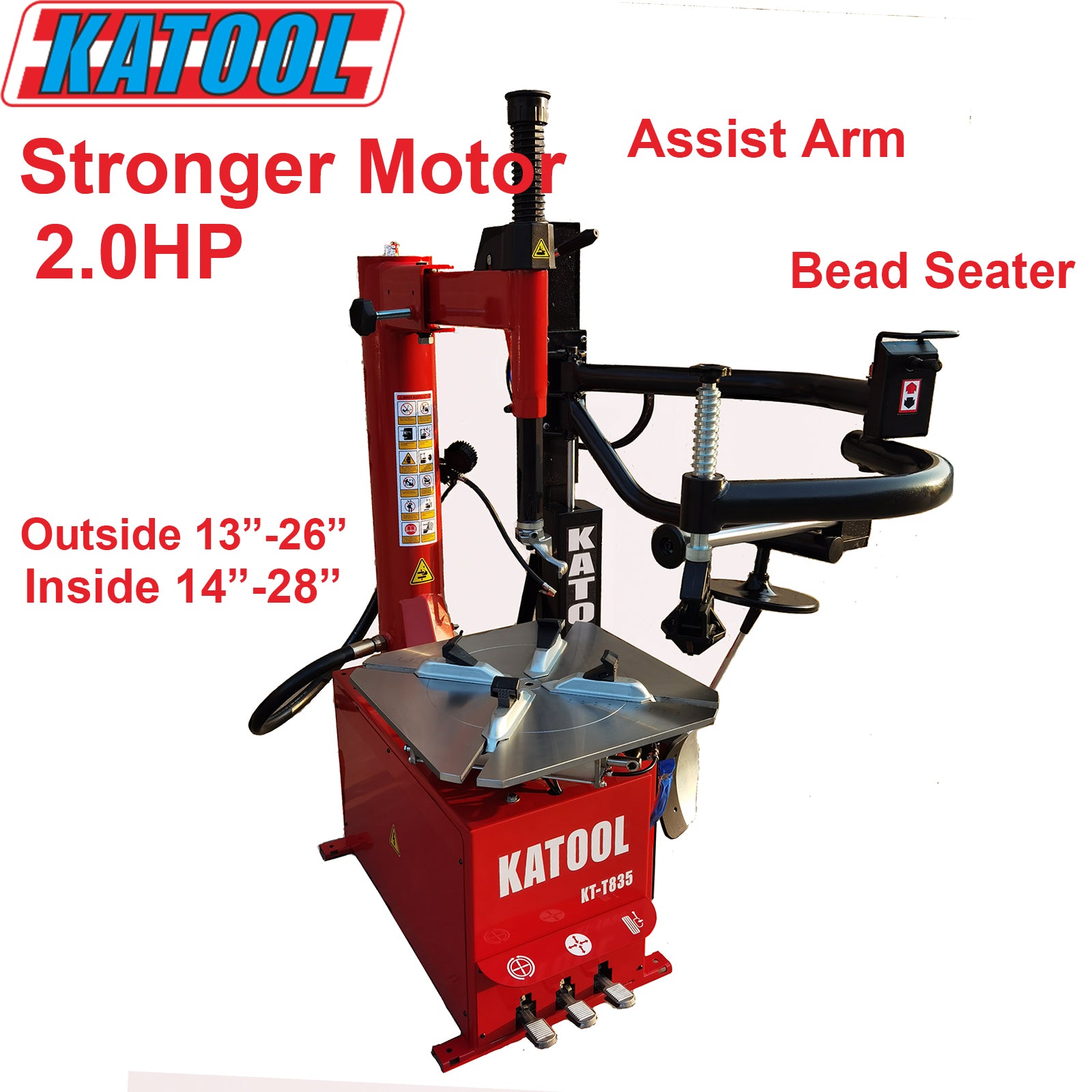

KT-T835 Tire Changer:
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
-- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim.
-- Inflation gauge with pedal control
-- With high quality spade cover, effective prevent damage rim.
-- Pull type pedal control system, convenience for changing and maintenance.
-- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
-- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
-- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working

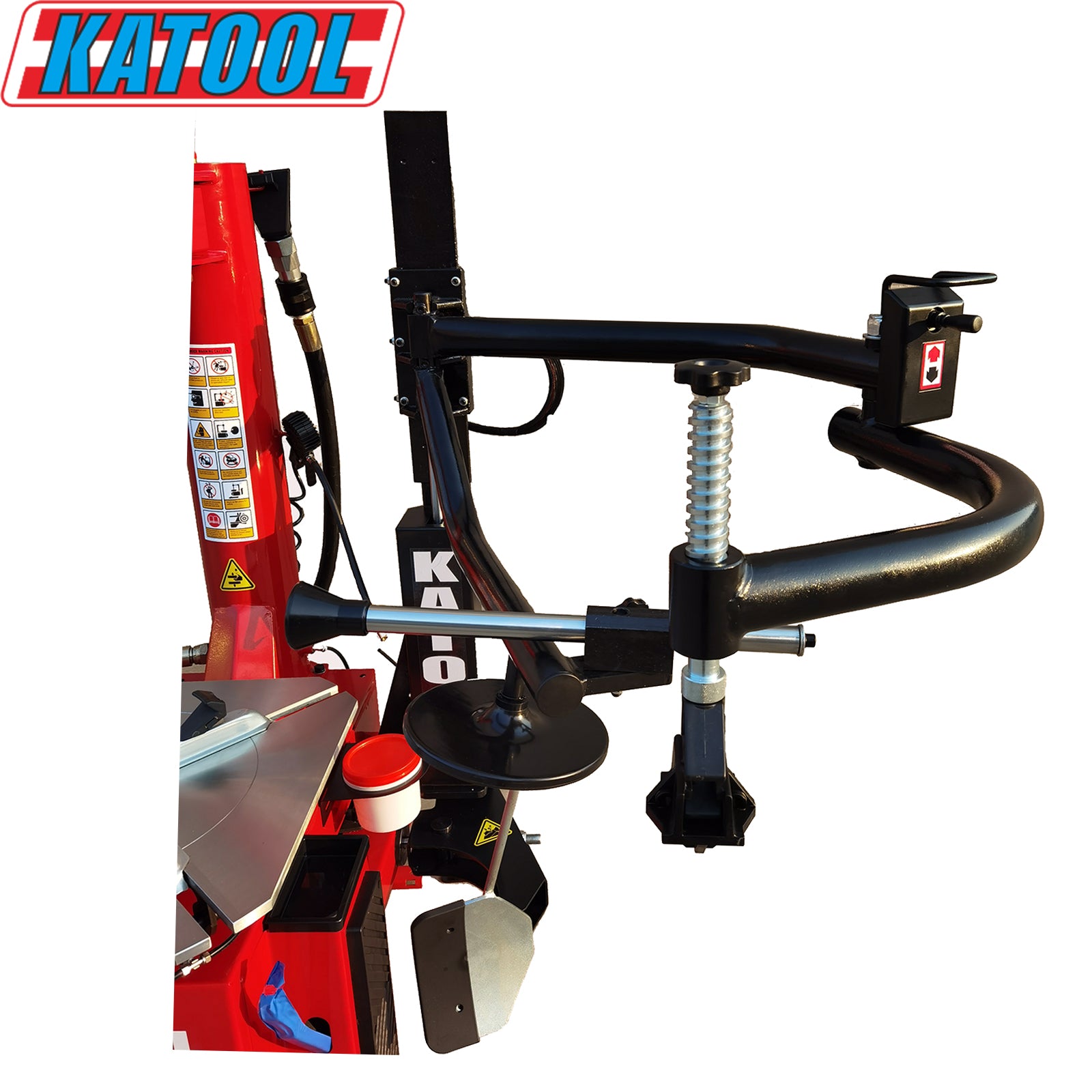

-- Double side assist arm
-- Bead blast seater head with post tank
-- φ186mm stainless bead breaker cylinder
-- Closed body for protect inside parts
Max Wheel Diameter :
|
41"/1040mm
|
Max Wheel Width :
|
15"/350mm
|

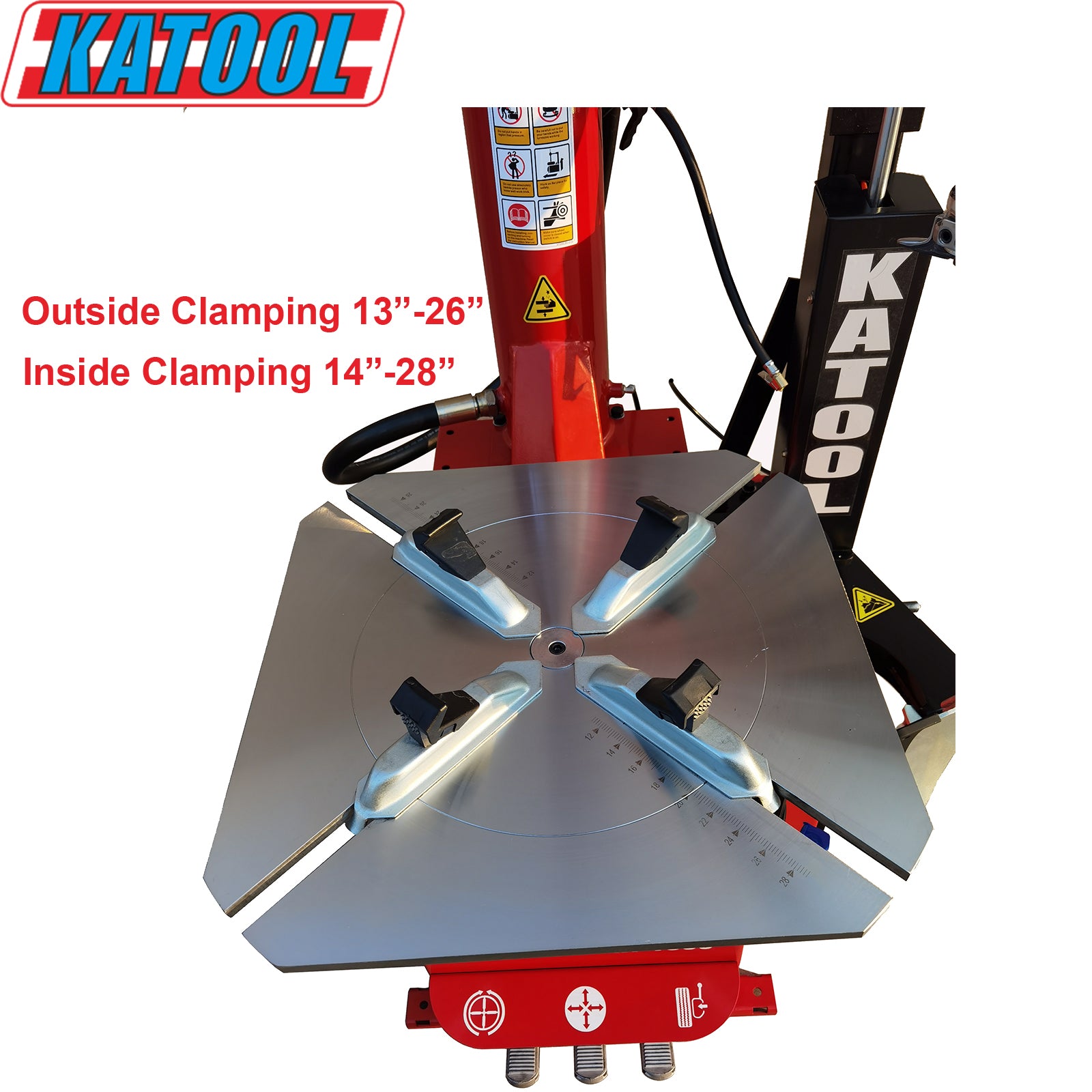

Outside Clamp:
|
13"-26"
|
Inside Clamp :
|
14"-28"
|
Power Supply:
|
110V 1PH/60HZ
|
Motor Power:
|
2.0HP/1.5KW
|
Rotation Speed :
|
6.1/min
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
Net weight :
|
582lbs
|

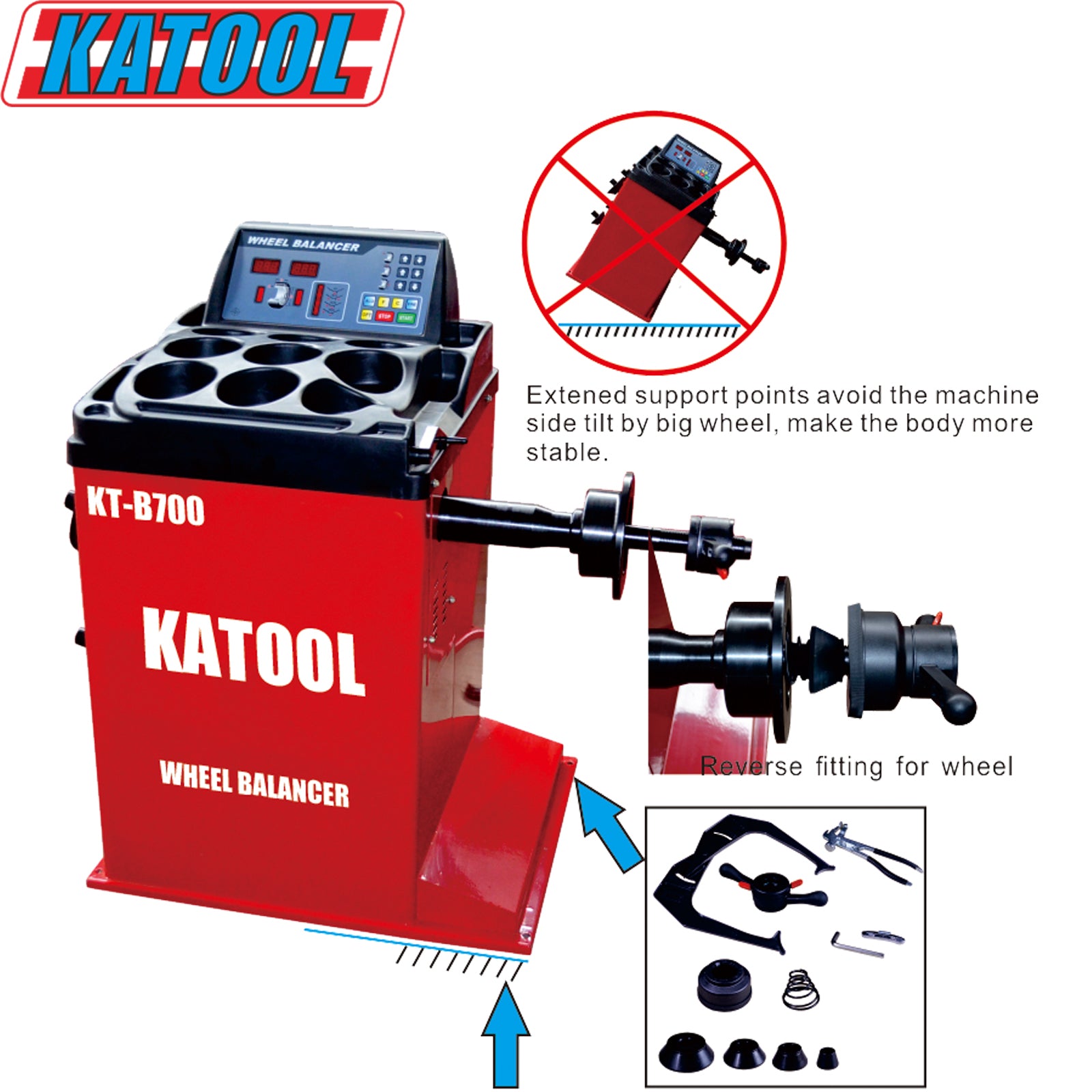

KT-B700 Wheel Balancer:

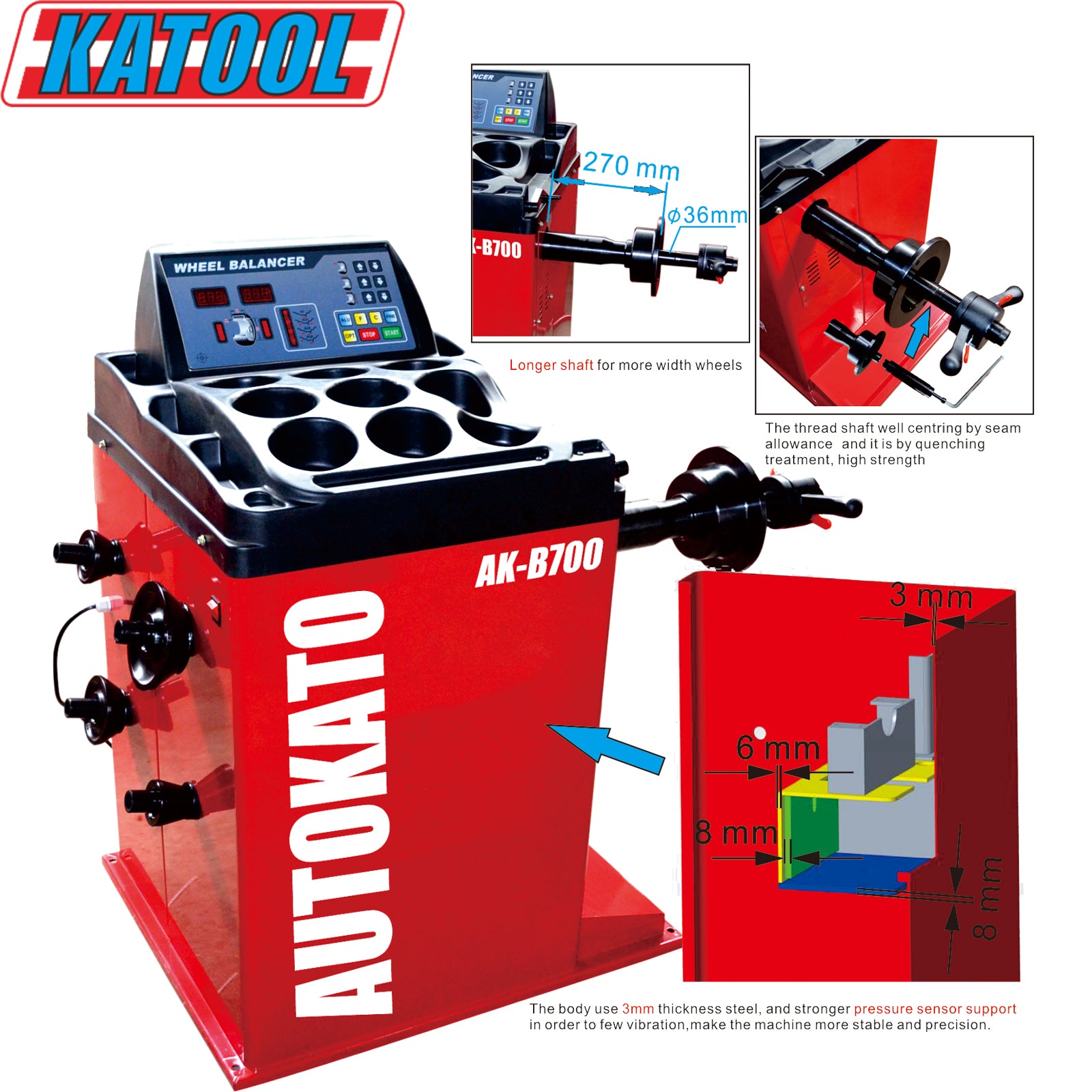

- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

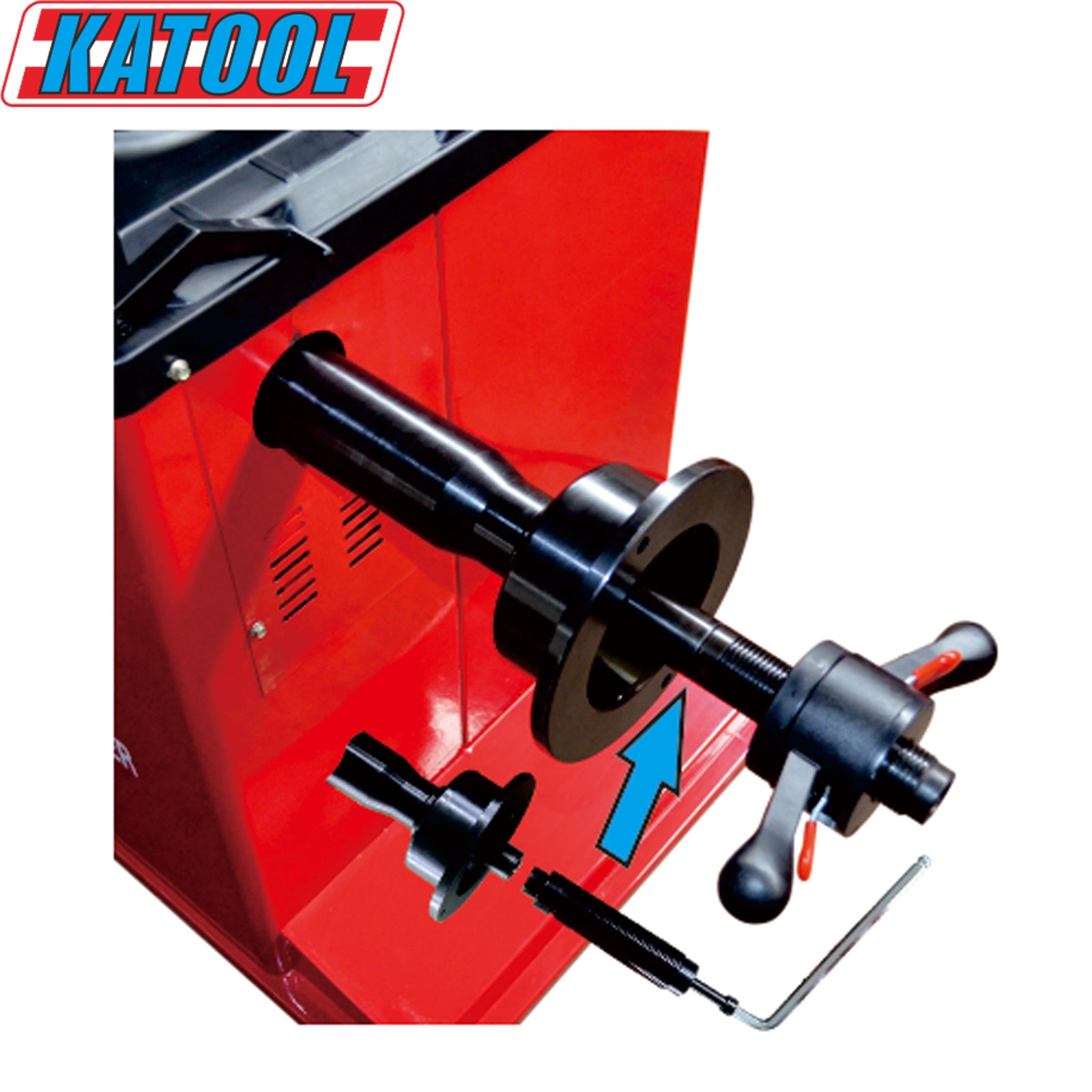

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable.
- Optional wheel guard
- Longer shaft also compatible with wider wheels
Rim Diameter: | <30" |
Wheel Width: | 3"-12" |
Wheel Diameter: | <880mm/34.64" |
Balancing Speed: | 180rpm |
Power Supply: | 120V 1PH |
Motor Power: | 0.25KW |
Rim Center Hole Dia.: | <135mm/5.31" |
Wheel Weight: | <65KG/143lbs |
Balancing Accuracy: | ±1g |
Measuring Time: | 7S |
