KT-H100 Two Post Lift 10,000lbs Capacity

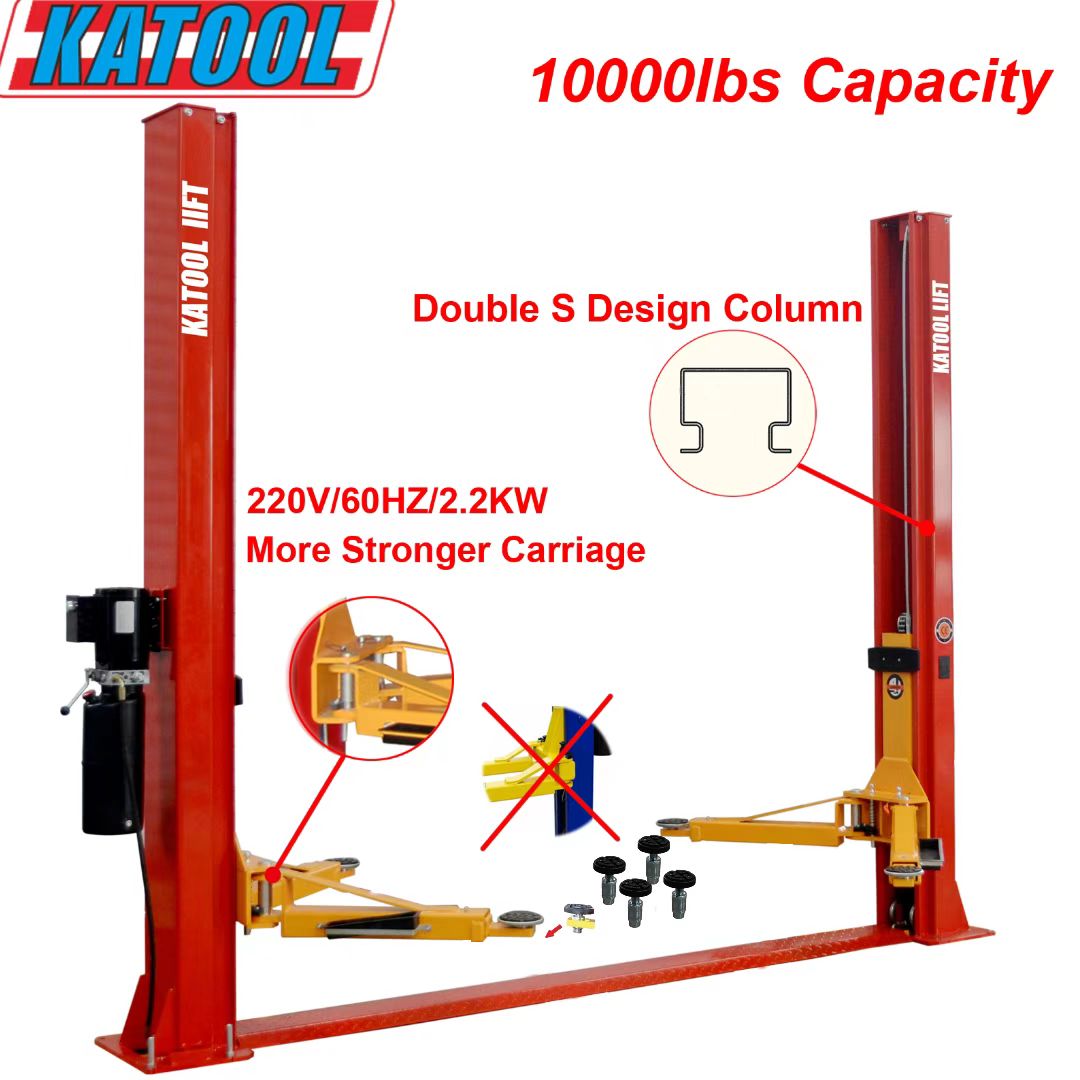

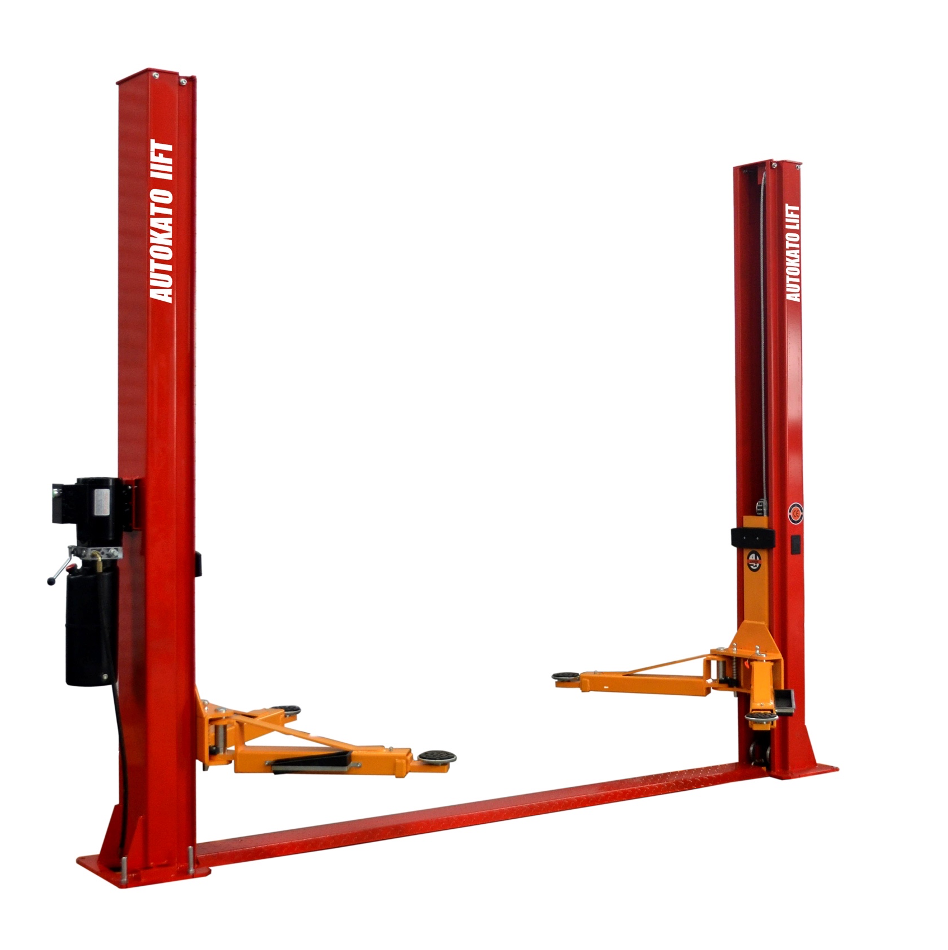

Katool KT-H100 Two-Post Vehicle Lift — 10,000 lb Professional Garage Lift

Reliable power for professional bays.
The Katool KT-H100 is a heavy-duty two-post vehicle lift engineered to give mechanics, performance garages, and serious DIYers dependable lifting performance with a balanced footprint and robust safety features. Designed to handle cars, SUVs, and light trucks with confidence, this lift combines rugged construction with proven hydraulic performance for everyday workshop use.

Key Features

• 10,000 lb (4,500 kg) Lifting Capacity — Supports a wide range of vehicles from daily drivers to larger SUVs.

• Dual Hydraulic Chain-Drive Cylinders — Smooth and synchronized lifting for stable, balanced elevation.

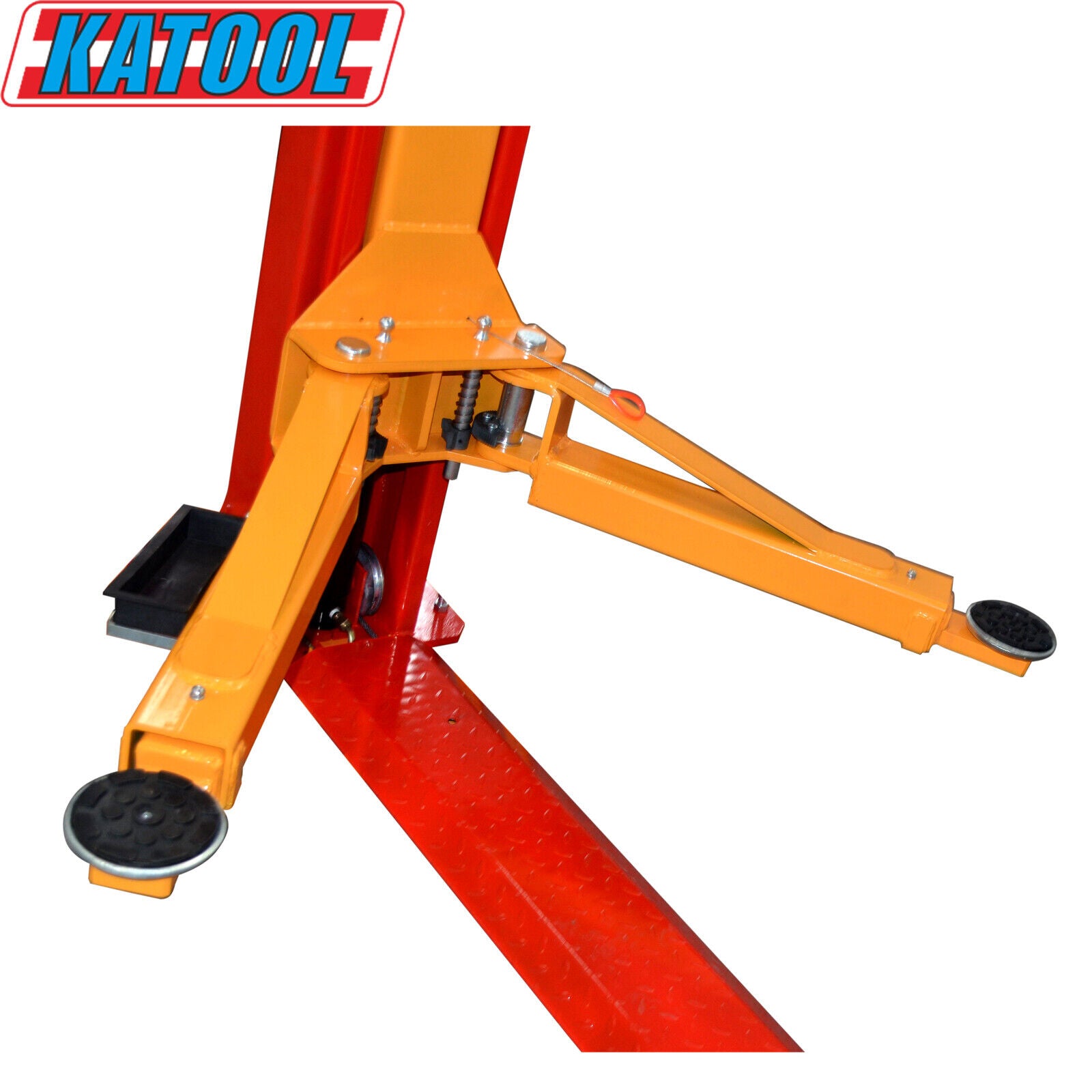

• Symmetric Arm Design — Balanced lifting geometry for ease of positioning and versatile service.

• Manual Safety Release (Both Sides) — Technician-friendly, accessible safety lowering from either column.

• Included Accessories — Extension support adapter sets (+30 mm & +120 mm),

• CE Certified Safety — Tested to 115% dynamic and 150% static load standards for added peace of mind.

Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.

2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.

3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 3,000-pound front axle and a 6,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient.Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.

• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.

• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
