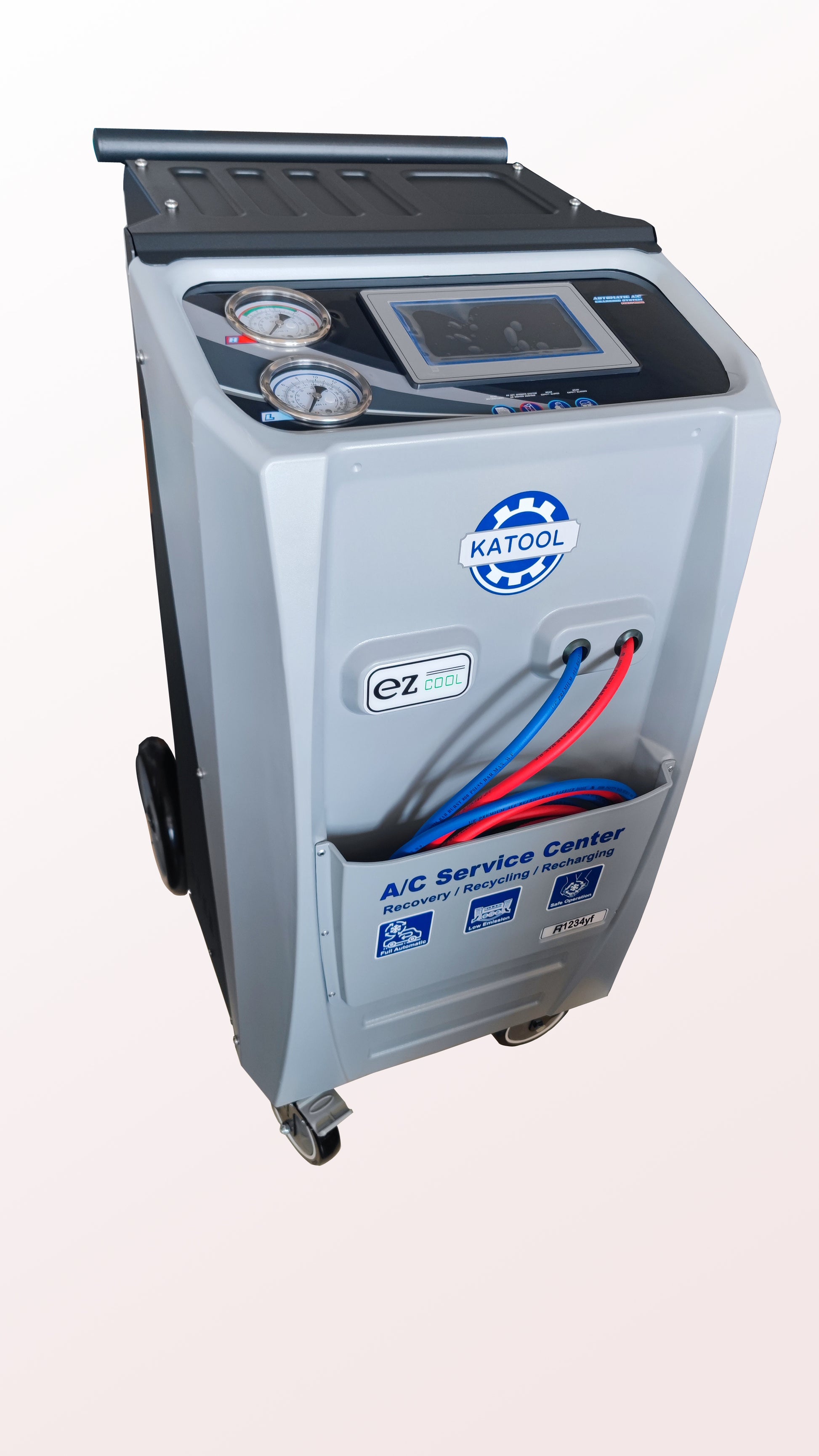

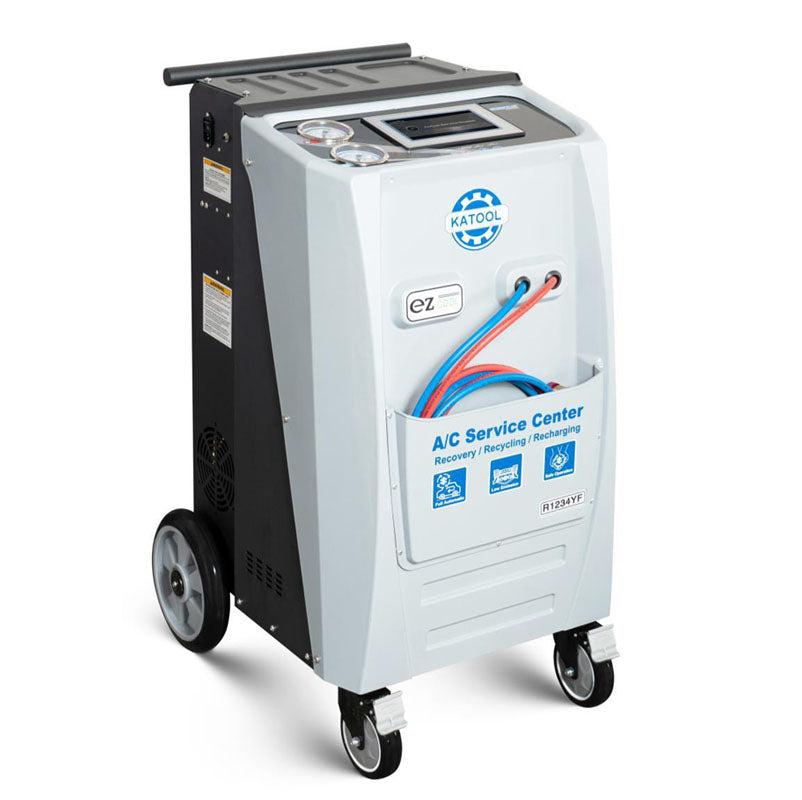

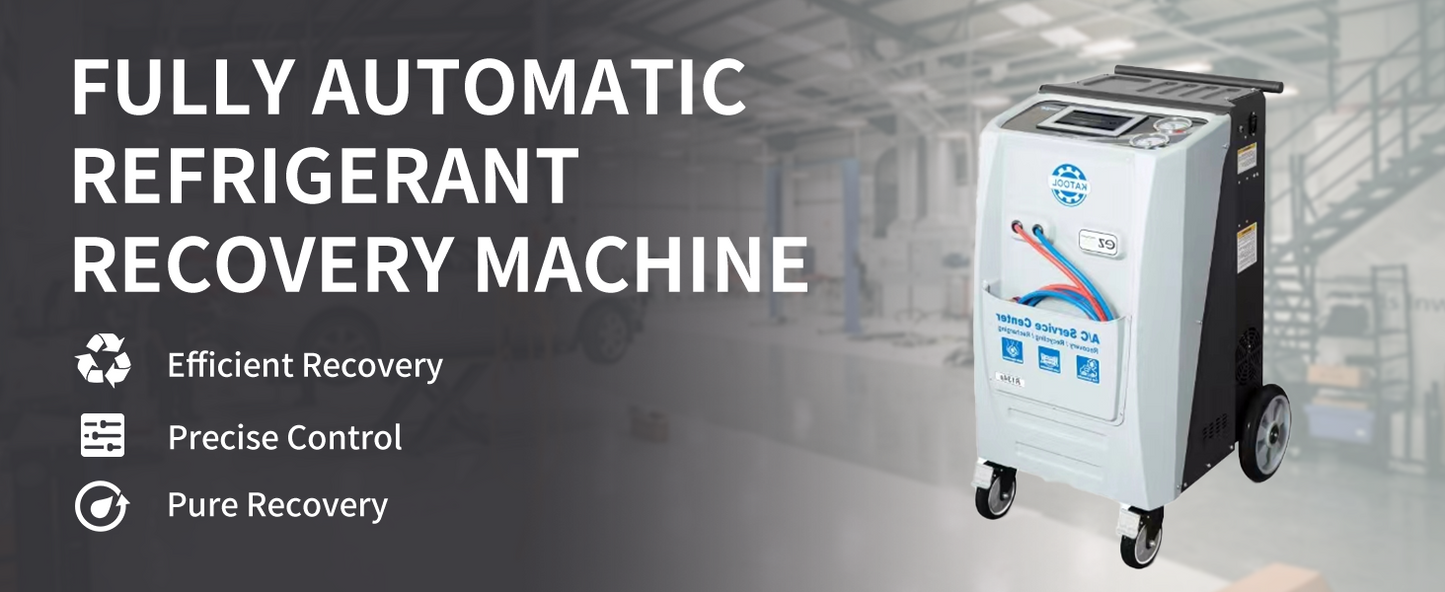

Fully Automatic R- 1234YF Recovery, Recycle & Recharge DUAL AC2100 Machine

Fully Automatic R- 1234YF Recovery, Recycle & Recharge DUAL AC2100 Machine

Regular price $3,950.00 USD
Regular price Sale price $3,950.00 USD
Sale Sold out

SHIPING POLICY:

  • Freight shipping ONLY within the lower 48 states.
  • Free shipping to commercial address.Shipping carrier could charge extra to residential Delivery or limited access.
  • THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
  • Customer should consider Forklift and unloading dock service.
  • The buyer should be also responsible for any re-delivery charges.
  • Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.

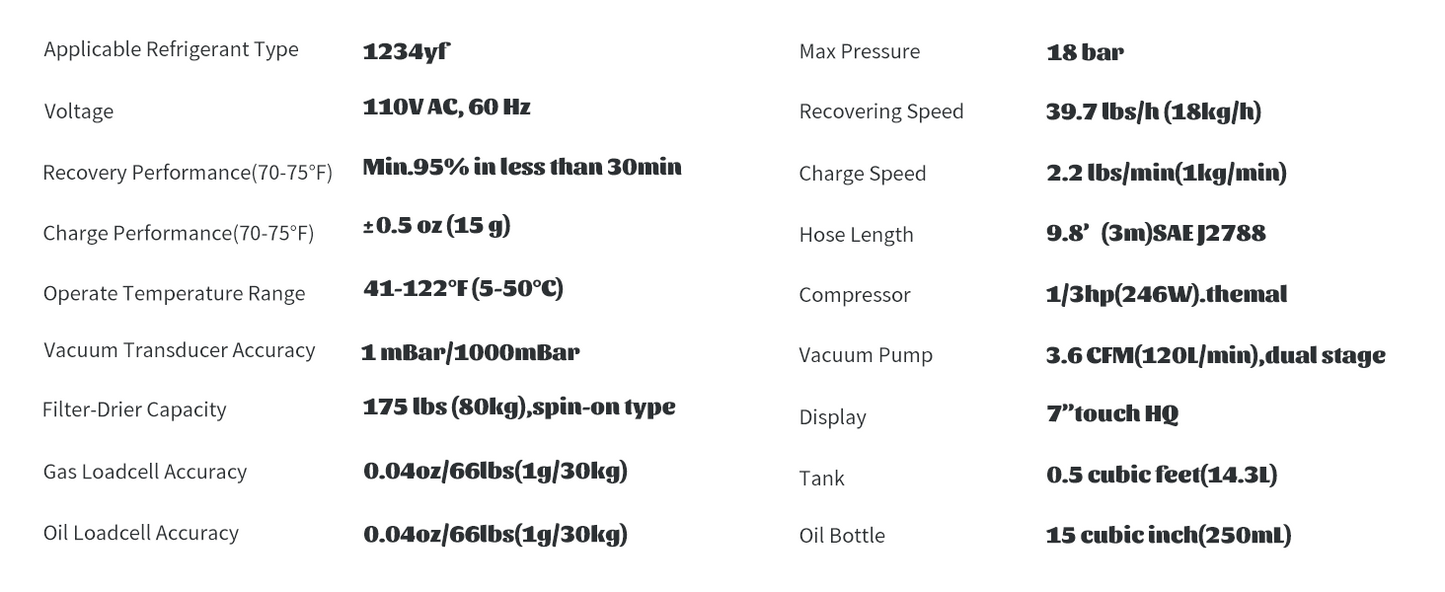

  •  Technical Details

  • Applicable Refrigerant Type

    R1234YF

    Voltage

    110V AC, 60 Hz

    Recovery Performance(70-75°F)

    Min.95% in less than 30min

    Charge Performance(70-75°F)

    ±0.5 oz (15 g)

    Operate Temperature Range

    41-122°F (5-50°C)

    Max Pressure

    18 bar

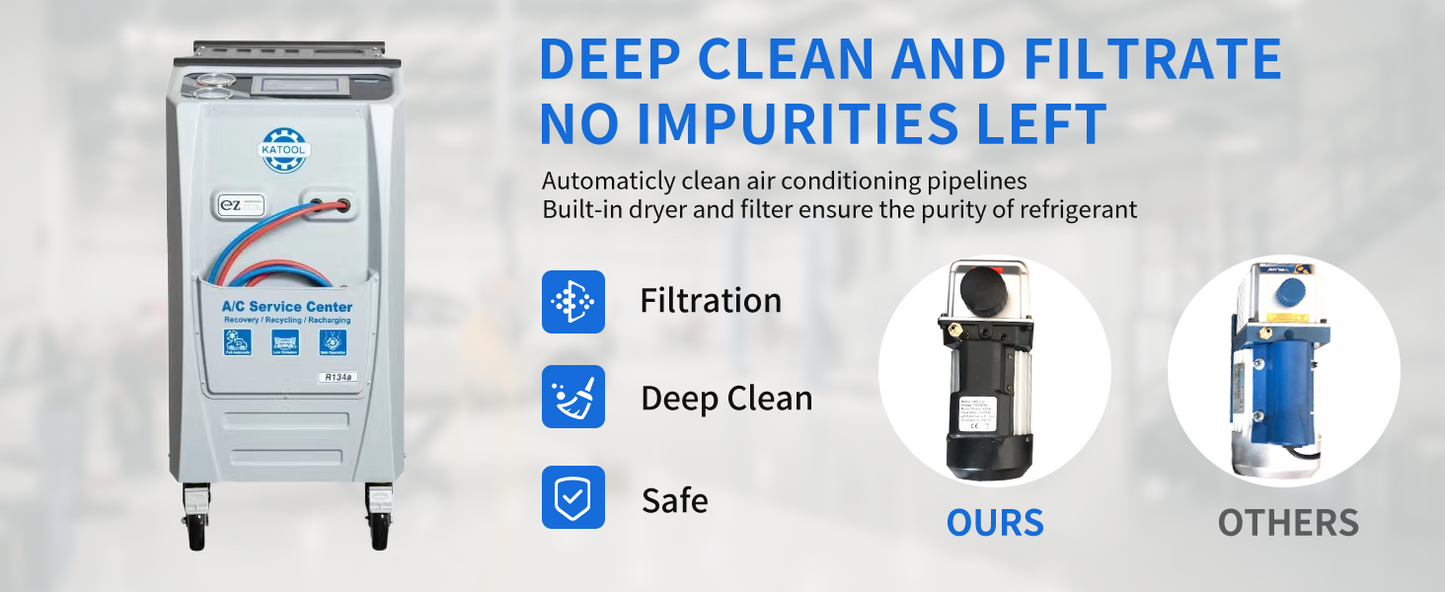

    Filter-Drier Capacity

    175 lbs (80kg),spin-on type

    Gas Loadcell Accuracy

    0.04oz/66lbs(1g/30kg)

    Oil Loadcell Accuracy

    0.04oz/66lbs(1g/30kg)

    Vacuum Transducer Accuracy

    1 mBar/1000mBar

    Recovering Speed

    39.7 lbs/h (18kg/h)

    Charge Speed

    2.2 lbs/min(1kg/min)

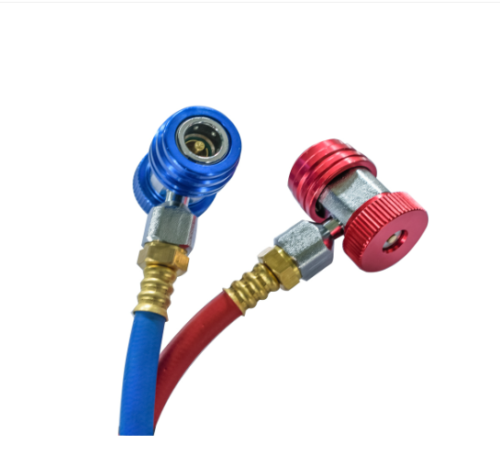

    Hose Length

    9.8’(3m)SAE J2788

    Compressor

    1/3hp(246W).themal protected,oiled,hermetically sealed

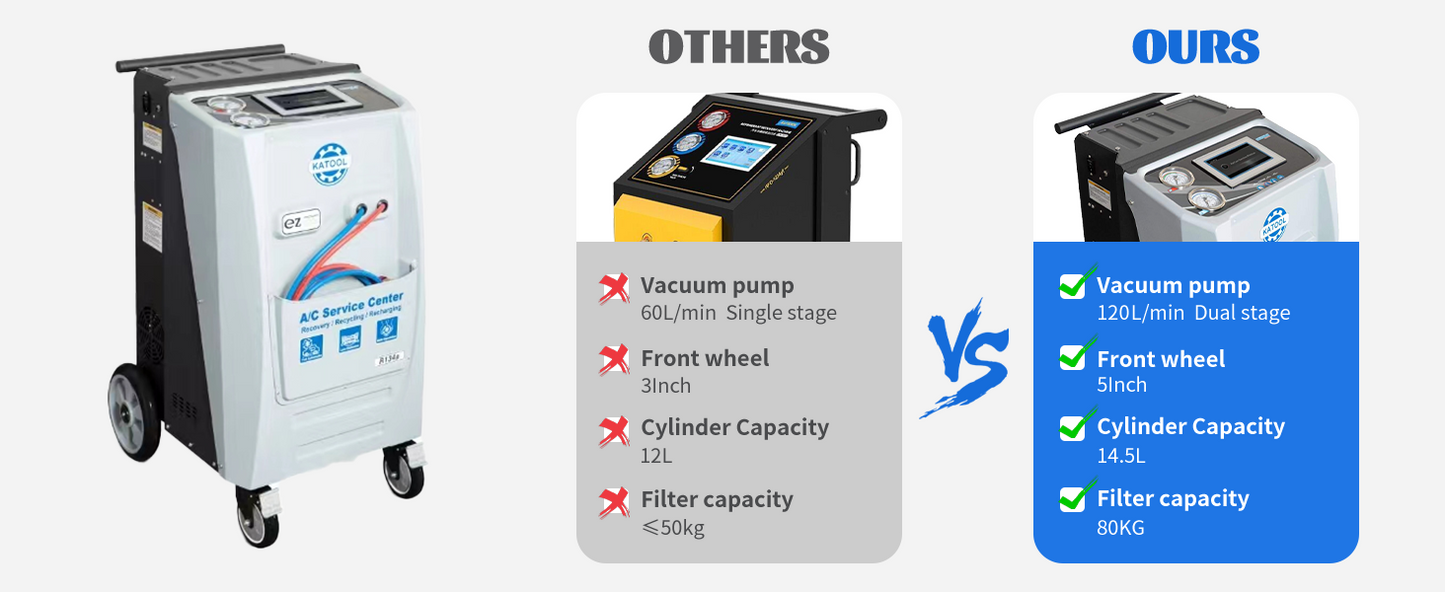

    Vacuum Pump

    3.6 CFM(120L/min),dual stage

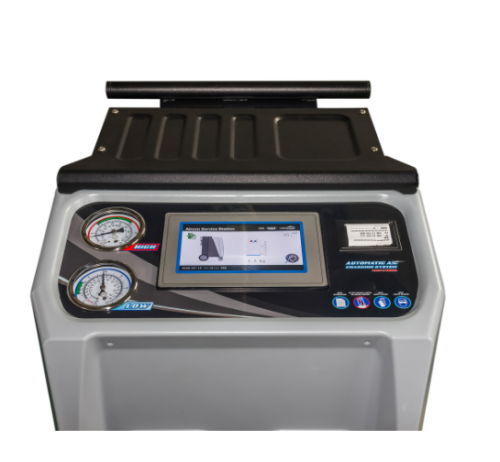

    Display

    7”touch HQ

    Tank

    0.5 cubic feet(14.3L)

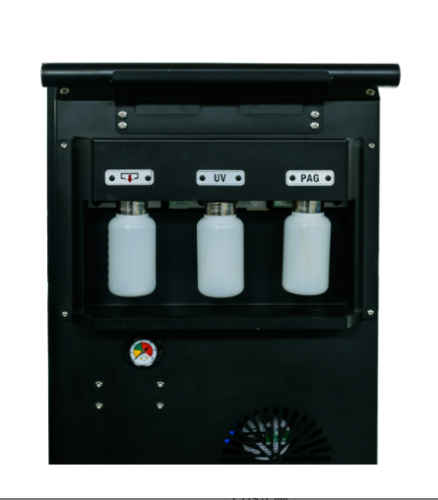

    Oil Bottle

    15 cubic inch(250mL)

    Additional information
  • Printer

    YES

    Heating Belt

    optional

    SD Database

    YES

    Vacuum Test

    YES

    Fan&Condenser

    YES

    Packing Size

    22”x 28”x41”(550x700x1050mm)

    Gross Weight

    240lb(110kg)





Materials

Steel

Shipping

Tire Changers, Tire Balancers, Shop Tool Equipment and Scissor Lifts: Free shipping to commercial addresses or nearby carrier terminals.

Two Post Lifts: $590 Flat rate shipping to commercial addresses. Customer is required to have a forklift.

Four Post Lifts: WAREHOUSE PICKUP ONLY. For custom shipping quotes, contact customer service.

Residential Delivery: $90

Liftgate: $90 (Not available for all products)

Read more information about shipment, please see our Shipping Policy.

Warranty

The purchasers of Autokato products (Autto) are protected by the manufacturer’s warranty. Autokato offers a one-year warranty on all product parts, and three year's warranty on product structure.

Free shipping on warranty parts. Labor is not included in warranty.

For the full warranty terms, disclaimer, and conditions - please contact the seller or send emails to info@autokato.com
