KT-X90E 8000 lbs Electric Mid Rise Scissor Lift 47" Lifting Height
KT-X90E 8000 lbs Electric Mid Rise Scissor Lift 47" Lifting Height
Couldn't load pickup availability
Product Overview

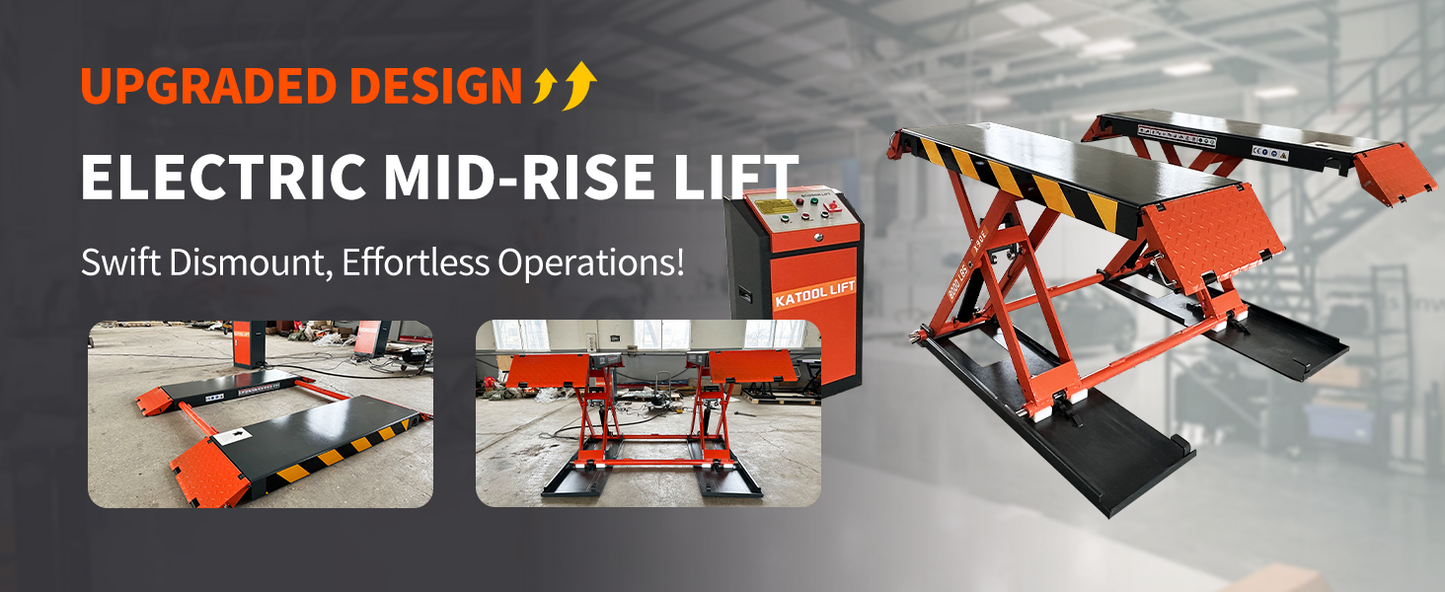

Katool X90E Mid Rise Scissor Lift
The Katool X90E KT-X90E is a robust 8,000 lb mid-rise scissor lift engineered to deliver reliable lifting power, superior durability, and enhanced safety features for automotive maintenance tasks. Built for both professional use and home garages with limited ceiling height, this lift provides excellent access to undercarriage components for inspections, repairs, tire service, and more.
Key Features
-

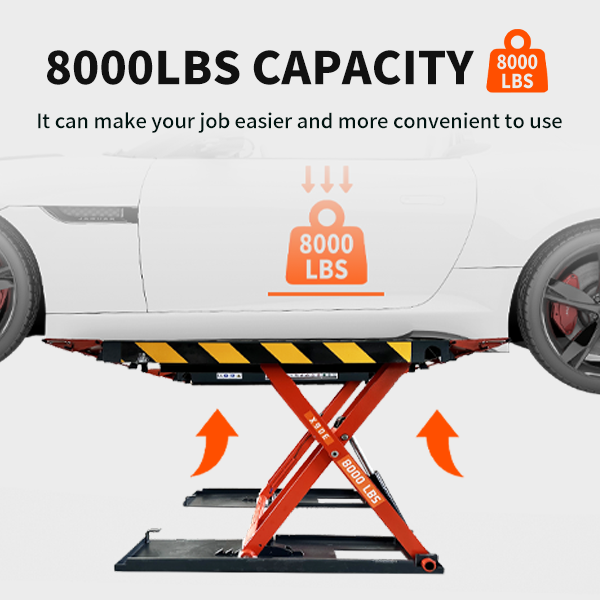

High Lifting Capacity: Handles a wide range of vehicles — from cars and SUVs to light trucks — up to 8,000 lbs.
-
Low Profile Design: With a minimal collapsed height, it fits garages with lower ceilings without sacrificing lifting performance.
-
Dual Power Compatibility: Works with standard 110 V or optional 220 V power, offering flexibility in various shop setups.
-
Maintenance-Friendly: Self-lubricating bushings and bearings reduce upkeep needs while ensuring smooth operation.
-
Safety First: CE certified with height limit switch, 24 V safe control system, and composite rubber lifting blocks.
-
Versatile Operation: Includes drive-up ramps and optional support bars (sold separately) to handle longer or heavier vehicles.
-
Mobility: Includes a caster kit for easy repositioning within the workspace.

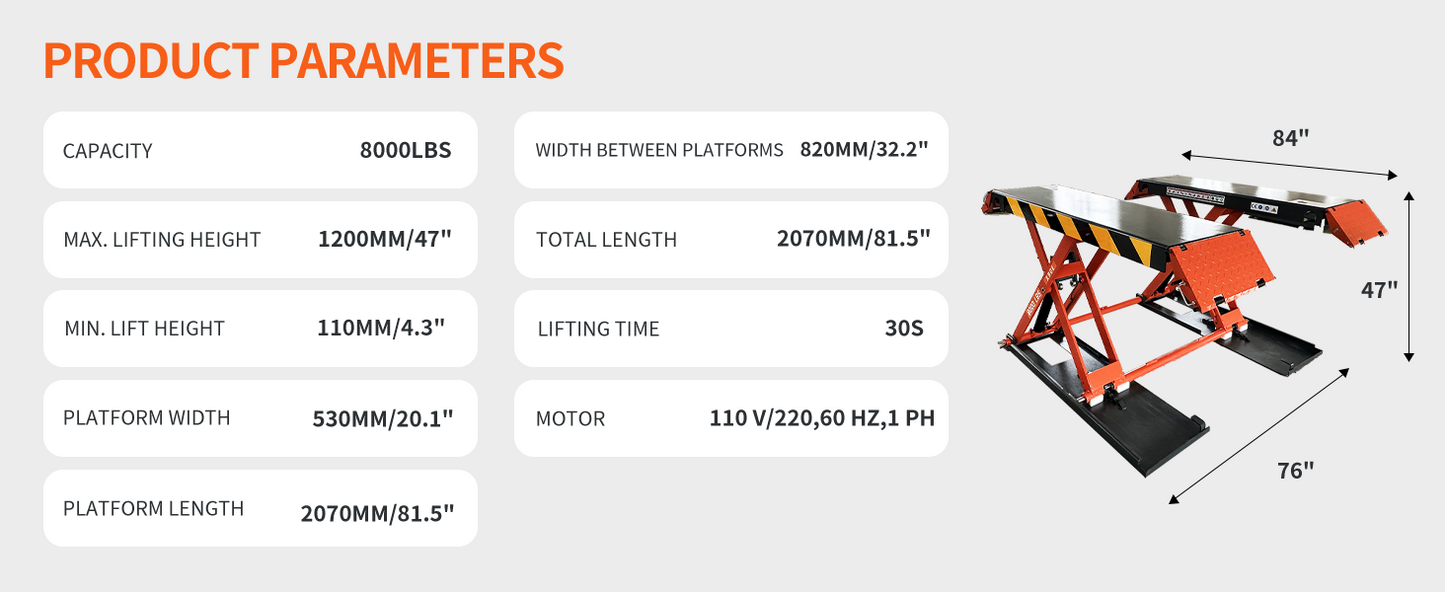

| Specification | Details |
|---|---|
| Model | KT-X90E |

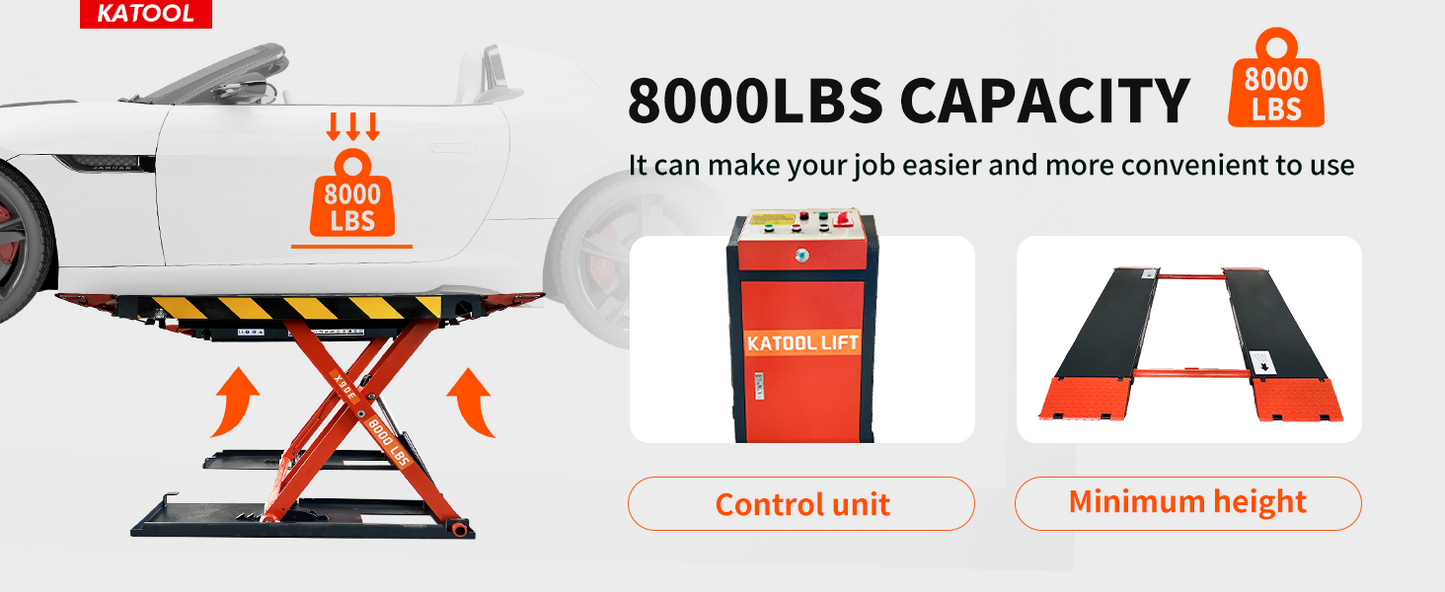

| Lifting Capacity | 8,000 lbs (3,500 kg) |

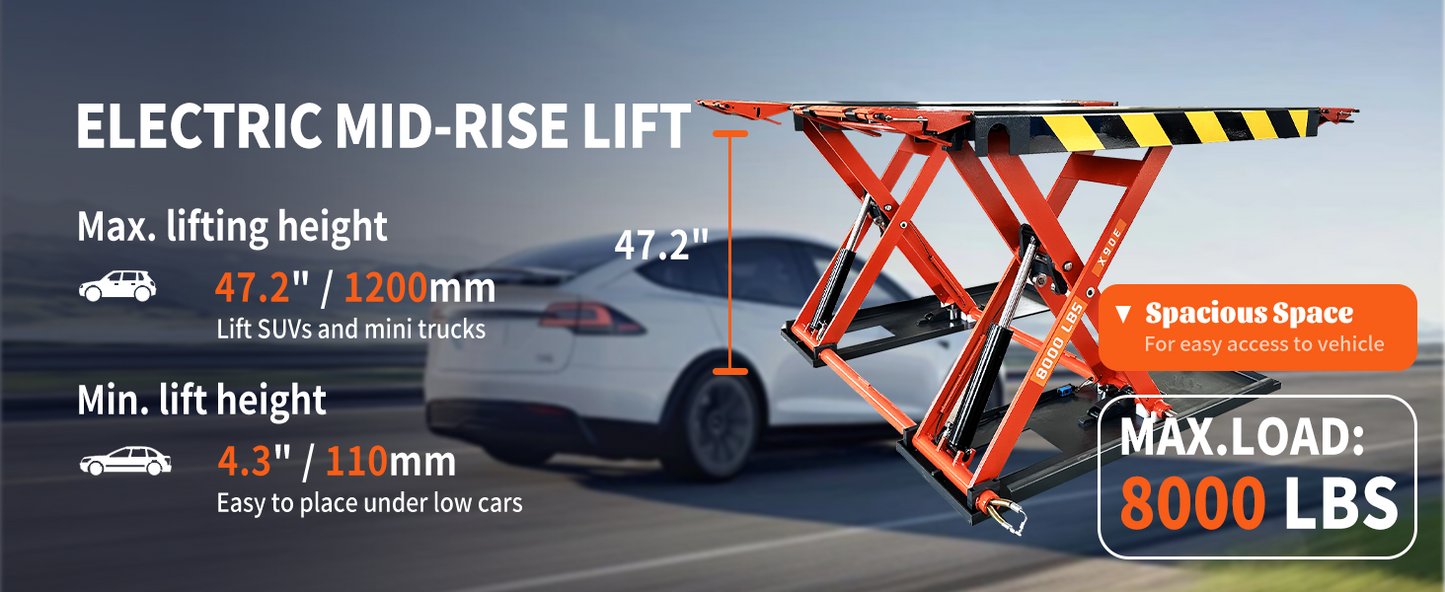

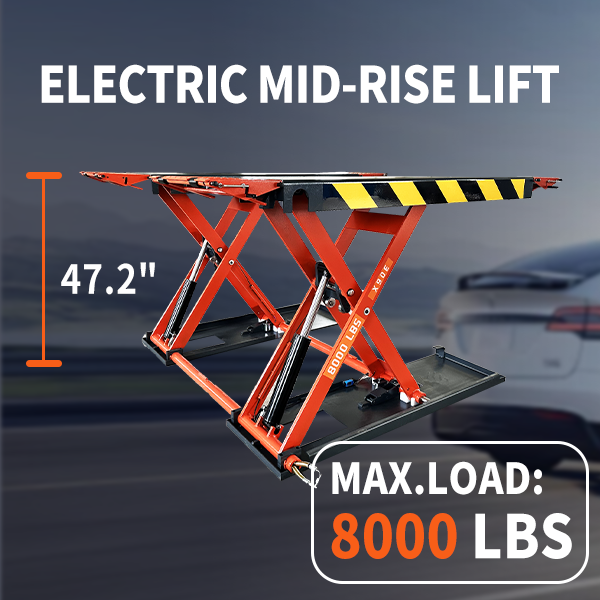

| Max. Lift Height | 47 in (approx.) |
| Min. Lock Point | 4.3 in |
| Lifting Time | 30 seconds |
| Platform Length | 81.5 in |
| Platform Width | 20.1 in |
| Width Between Platforms | 32.2 in |
| Rated Hydraulic Pressure | 20 MPa |
| Power Requirements | 110 V (30 A) or 220 V, 60 Hz, single-phase |

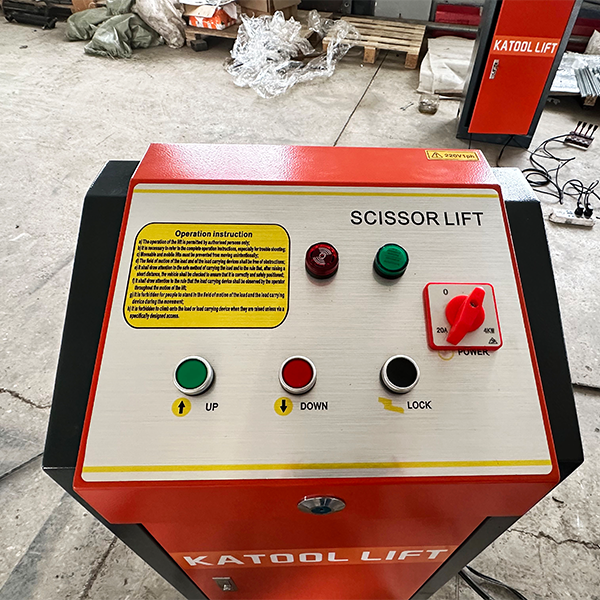

| Control System | 24 V Safe Control |

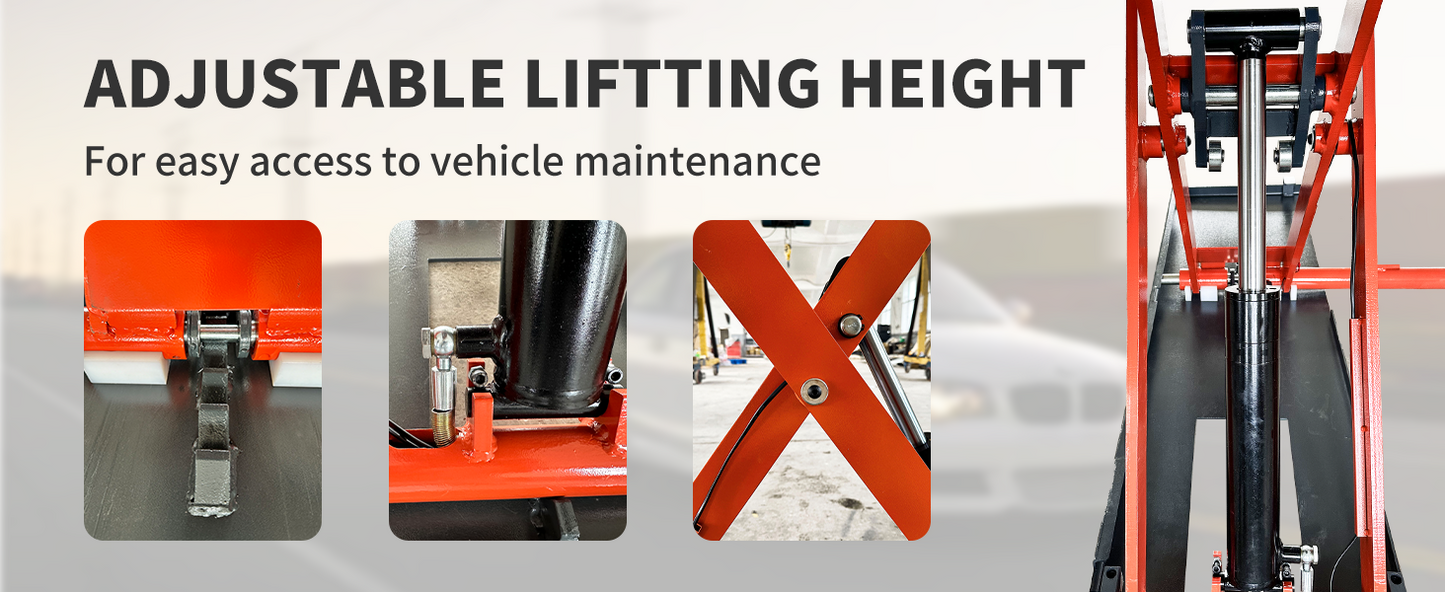

| Mechanical Lock Positions | 5 |
| Hydraulic Oil Type | AW-46 (AW-32 for colder climates) |
| Certification | CE – 115 % dynamic and 150 % static load tested |

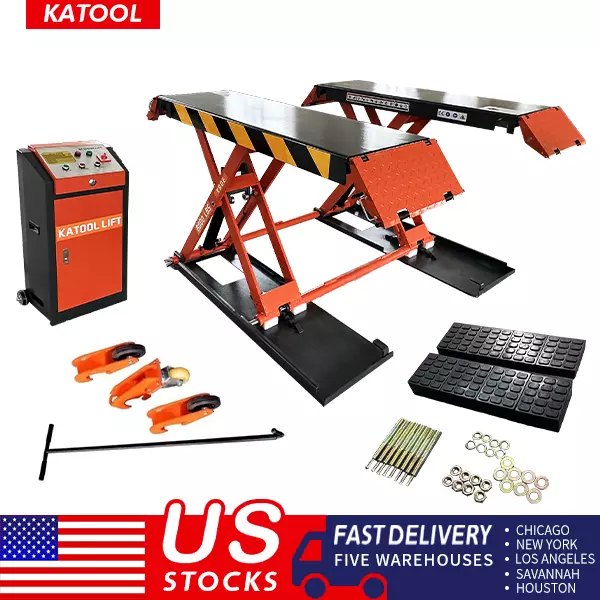

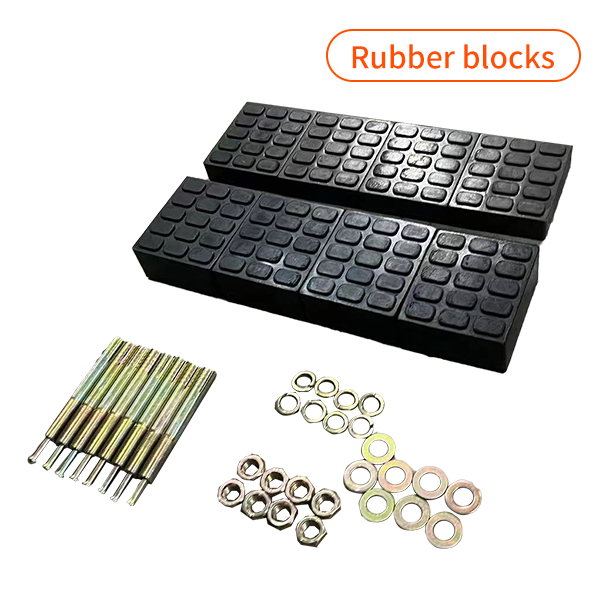

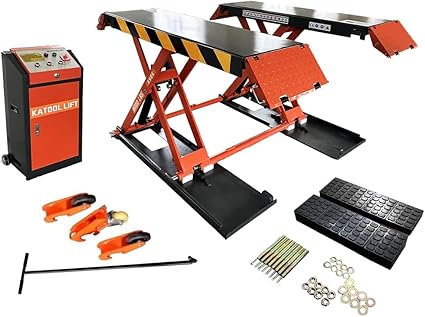

| Included Accessories | Drive-up ramps, composite rubber lifting blocks, caster kit |
| Optional Accessories | Support bars (adjustable) |
| Warranty | Typically 1 yr parts + extended structural coverage |
Materials
Materials
Q235 and Q245 steel
Shipping
Shipping
Please review carefully before placing your order.
** Please be aware of seasonal shipping and pick up order delays. Orders may take up to 3 weeks to arrive or be available to pick up.
Now offering shipping to Alaska and Hawaii. Please contact us for a shipping quote before ordering.
Shipping Coverage
- Freight shipping only within the lower 48 states.
- Fulfillment times are 6-10 business days.
- Free shipping applies to:Tire Changers, Tire Balancers, Shop Tool Equipment, and Scissor Lifts → delivered to commercial addresses or the nearest carrier terminal.
- Two-Post and Four-Post Lifts:Customer must provide a forklift for unloading.Please make sure to select the correct shipped or pick up option BEFORE ADDING THE ITEM TO YOUR CART.If no forklift is available, we can arrange terminal delivery for pick-up instead.
Additional Services & Fees
- Residential Delivery: $90
- Liftgate Service: $90 (not available for two post, four posts, and select scissor lifts; contact us to confirm before ordering)
Customer Responsibilities
- Customers are responsible for unloading freight from the truck.
- A forklift or unloading dock service is strongly recommended.
- Customers are responsible for any re-delivery fees if the carrier cannot complete delivery.
- Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
Inspection & Claims
- Carefully inspect your order before signing the Bill of Lading or delivery receipt.
- All visible damage or missing items must be noted on the delivery receipt at the time of delivery.
- Report concealed damage or shortages to our Customer Service team within 48 hours of delivery.
- If no issues are noted at delivery, the shipment will be considered received in satisfactory condition.
Read more information about shipment, please see our Shipping Policy.
Warranty
Warranty
The purchasers of Autokato products (Autto) are protected by the manufacturer’s warranty. Autokato offers a one-year warranty on all product parts, and three year's warranty on product structure.
Free shipping on warranty parts. Labor is not included in warranty.
