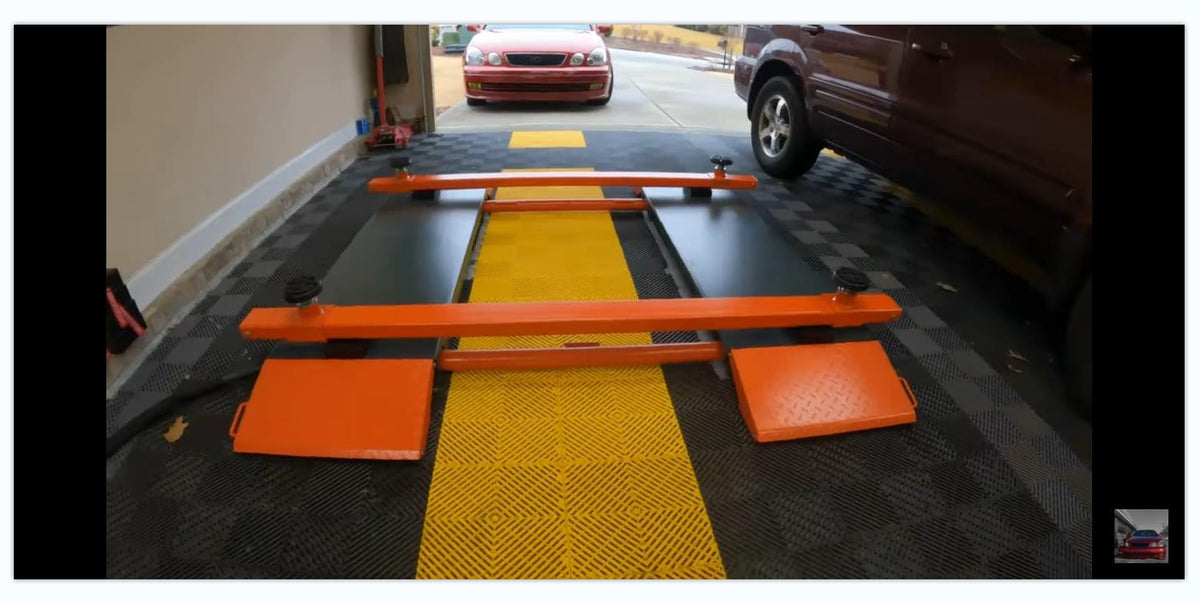

X80-Pneumatic Mid Rise Scissor Lift
X80-Pneumatic Mid Rise Scissor Lift
Couldn't load pickup availability
AK-X80 Pneumatic Scissors Lift
- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Mobile or fixed mount design
- Starting-up system design
-
Pneumatic safety release
- 24V safe control system
- Height limit switch
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles
- Portable, mobile kit included making the lift move in your garage easily
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH
- The unit need to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.
| Lifting Capacity | 8000lbs.(3500KG) |
| Max. Lifting Height | 41.25"/1050mm |
| Min. Height | 4.25"/110mm |
| Platform Length | 56.25"/1430mm |
| Length Overall | 80"/2036mm |
| Platform Width | 19.5"/500mm |
| Width Overall | 73.25"/1860mm |
| Motor | 110/220VAC/60HZ/1PH |
| Net Weight | 1213lbs/550KG |
SHIPPING POLICY: Please read carefully
*Please refuse the shipment and do not accept it if the package is visibly damaged, and take pictures as evidence.
- Freight shipping ONLY within the lower 48 states.
- Free shipping to commercial addresses only. Remote areas may be charged extra for shipping. Please confirm before delivery.
- Shipping carrier may charge extra to residential Delivery.
- THE BUYER IS RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
- Customer should consider Forklift and unloading dock service.
- The buyer should be also responsible for any re-delivery charges.
- Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.
